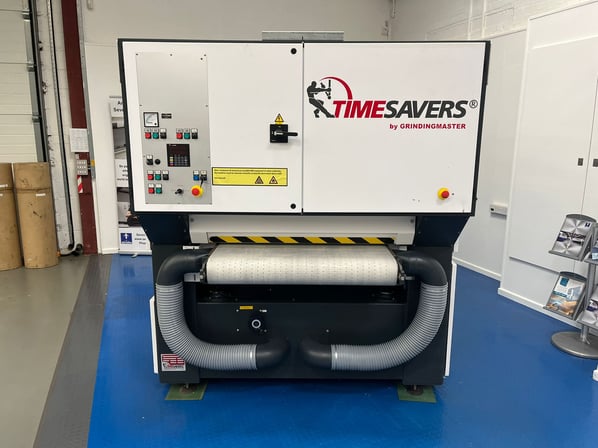

Timesavers 42-1000-RB Rotary Brush Deburring machine

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Part of a Direct Site Clearance
Timesavers Grindingmasters
Condition
From a working environment, Seen working by RSW, Excellent Condition, Current Model
Stock No
GEM500J
Manufacturer
Timesavers
Model
42 - Serie - 1000 - RB
Year of Manufacture
2014
Serial
2543-01
Condition
From a working environment, Seen working by RSW, Excellent Condition, Current Model
R.P.M.
N/A
Hp/Kw
90Kw
Other Info
Multi-directional Rotary Brushes
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
4500
External Dimensions (WxDxH mm) [?]
1850 x 2500 x 2100mm

Description

Timesavers 42-1000-RB Rotary Brush Deburring machine

  • The multi-directional (rotary Brush assembly) is suitable for 2 brushes. One Brush rotates clockwise and one brush rotating counter clockwise.
  • Frequency regulated variable main motor drive with digital read out for the brushes.
  • Motorised height adjustment. To compensate for brush wear.
  • Quick exchange system for the easy change of the brushes.

 Operation

  • Easy operation by means of pushbuttons with light indicator on/off.
  • Load meter indicates percentage of motor load.
  • Transport Speed control
  • Height Adjustment

 Conveyor

  • Product conveyor table is constructed of heavy plate steel. Precision-machined top mounted on four synchronized lead screws.
  • Conveyor belt, High friction ‘STICKY’ flat belt to hold small parts.
  • Motorized table height adjustment 1 to 125 mm suitable for almost every part.
  • Thickness read-out in mm.

 Pressure rollers for accurate guiding of parts

  • Pressure rollers: oil and heat resistant, plain-faced rolls to ensure positive feeding of most parts. These rollers are covered with thick high flexible rubber for spring load action.

 Additional equipment

  • Main frame: fabricated of heavy steel plate properly ribbed to avoid vibration and deflection.
  • Dynamic balancing: all high-speed rollers and contact roller are dynamically balanced to prevent hammering-out of vital parts and preserve machine life.
  • Access doors on operation side of the machine for maintenance and quick change of abrasive belts.
  • Dust extraction funnel where the dust is formed to ensure cleaner, better and more consistent work.
  • Brake, stops grinding head when limit switch is tripped or estop is activated.
  • Main switch door lock.
  • Hour counter.

Safety

  • Finger protection if the hinged guard is triggered, conveyor will stop immediately.
  • If a door is opened during operation, the machine will stop automatically.
  • Emergency stops at infeed- and outfeed side of the machine.



General specifications 42-1000-RB





Max. working width

1000

mm

Brush dimensions length x dia

1000 x 350

mm

Table height opening

1 - 100

mm







Speed





Feed speed freq. controlled, variable speed

0.5 - 10

m/min.

Rotary brushes

6 – 17

m/sec.







Electrical





Main motor RB head

1.5

kW

Brush motor 2 x 1.5kW

3

kW

Conveyor motor

1.3

kW

Vacuum pump

15

kW

Electrical connection

400

Volt

Mains frequency

50

Hz

Control voltage

110

V







Total dust extraction capacity





Extraction capacity required at 100 mm WC

± 2000

m3/h







Weight unpacked





Weight of machine

Approx. 4500

Kg













pdf icon Print / Download Timesavers 42-1000-RB Rotary Brush Deburring machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
