Timesavers Grindingmaster Type MCSB-B-600 Flat Bed Belt Grinder

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Timesavers Grindingmasters
Stock No
PB1163
Manufacturer
Timesavers
Model
MCSB-B-600
Serial
KP47505
R.P.M.
1600
Hp/Kw
Hd 1 13kW /21Hp : Hd 2 11kW / 14Hp
Other Info
600 wide Belt & Brush
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1500
External Dimensions (WxDxH mm) [?]
1850 x 1950 x 1970

Description

Grindingmaster MCSB/B-600 Wide Belt Machine

The Grindingmaster MCSB/B-600 is a 600mm wide belt and brush/roll dry working machine that is equipped with powerful motors allowing it to process the toughest and heaviest jobs around. The Grindingmaster is a premier industrial metal working multi finishing machine.

Typical process applications covered by this machine:

  • Stock removal of multiple individual parts and sheet materials
  • Grain and scratch brush finishing of any material.
  • Sizing and finishing of parts and sheet materials
  • Deburring punched, nibbled, sheared or laser-cut sheet metal parts.
  • Calibrating or keying carbon, rubber, wood or other soft materials.


Standard features include:

  • Centralised operator control panel.
  • Full 600mm working width
  • Wide belt head with fine adjustments of contact roll, 150 mm overall clearance.
  • 4 x ridged, precision made, rubber coated, work piece hold down rolls per station.
  • Setomatic motorised, single point thickness setting.
  • Floating or fixed table option
  • Vernier thickness read-out.
  • Conveyor reverse for set-up.
  • Variable speed table motor.
  • Dust extraction funnel
  • Load amp indicators
  • Belt oscillation
  • Front edge safety bump E stop
  • Pneumatic tensioning
  • Air actuated braking



pdf icon Print / Download Timesavers Grindingmaster Type MCSB-B-600 Flat Bed Belt Grinder Datasheet

Additional files

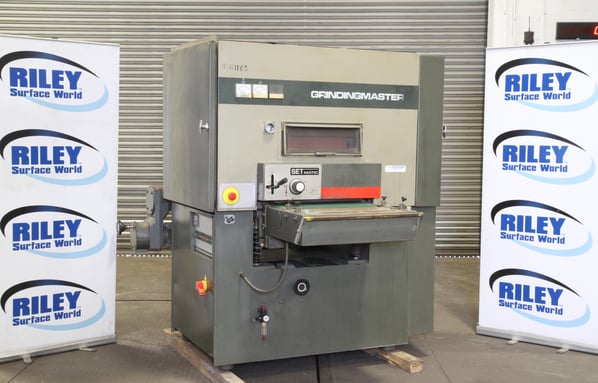

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
