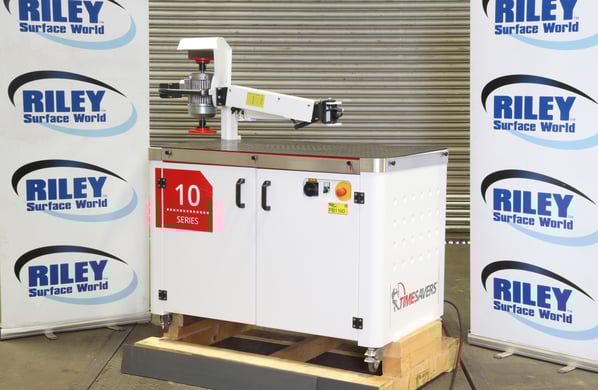

Timesavers Model 10-Serie-1300-MG Deburring Machine

Stock No
PB1160
Manufacturer
Timesavers
Model
10-1300-MG
Year of Manufacture
2021
Serial
2547-457
Condition
Brand New, Excellent Condition, Current Model
R.P.M.
1500
Hp/Kw
2.1 / 1.6 Single Head
Other Info
1300 x 800 bed
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
250
External Dimensions (WxDxH mm) [?]
1350 x 860 x 1530

Description

Timesavers Model 10-Serie-1300-MG Deburring Machine - features a high friction table cover prevents parts from moving whilst being processed, for very small parts or light alloy there is also a vacuum area.

Introduction
The model 10-serie-1300-MG is suitable for deburring and rounding of metal parts.
The parts to be processed must have the following properties:
• Flat
• Minimum size Ø20 mm, for machine types with a vacuum system, Ø50 mm for machine types without vacuum system,
• Maximum weight 50 kg.

Machine includes

  • Vacuum table
  • Backing disc with Velcro
  • Flap brush, brown, P80 and scotch-brite
  • Wheels
  • Funnel dia. 40mm to connect to dust collector

Head side 1: Abrasive Discs
For deburring and grinding

  • Grinding Disc pad to remove the upstanding burr.

Head side 2: Brush Head
For deburring and finishing

  • Scotch Brite: Flap Brush to deburr and soften the edges of the part.

Machine Features

Operation

  • Easy operation by means of pushbuttons with light indicator on/off.
  • Grinding head with adjustable speed, frequency controlled.

 Grinding Head

  • In two positions movable arm with weight compensation.
  • Grinding disc for removing heavy burrs.
  • Flap wheel for edge rounding.
  • Electronic brake on the head.
  • High friction table cover, prevents parts from moving during deburring.
  • Adjustable grinding/brushing speed.

 Worktable

  • Dimensions 800 x 1300mm.
  • Vacuum area 250 x 300mm.
  • High friction work surface, to prevent parts from slipping.
  • Holes in the work-table to allow dust extraction.
  • Safety rail, can be lowered to accommodate larger parts.

 Vacuum table

  • The machine is equipped with vacuum table and pump, to make it possible to process small parts. Under the vacuum area, there is a dust-collection bin (see pictures). This should be cleaned frequently.

 Safety

  • Emergency stops at operational side.
  • Check max. RPM of your tooling, before using the machine


Technical Specifications

General specifications  10-1300-MG





Table size

1300 x 800

mm

Vacuum area

310 x 260

mm







Speed





Feed speed freq. controlled, variable speed

2 - 14

m/min.







Electrical





Main motor 1st head

0.75

kW

Vacuum pump motor

1.6

kW

Electrical connection

400

Volt

Mains frequency

50

Hz







Total power

± 2.5kW

11.6A







Weight unpacked





Weight of machine

Approx. 255

Kg























pdf icon Print / Download Timesavers Model 10-Serie-1300-MG Deburring Machine Datasheet

Additional files

Drawing

Variety of Brush Heads

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
