Filtex FX125 Self Contained Shaker Type Dust Extraction Unit

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
EB1946
Manufacturer
Filtex
Model
FX125 Type D
Serial
6368
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
1000 cfm // 1700M3/hr
Filter Area ft² / m²
125 // 12
Other Info
Very Compact, Self Contained Unit.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
275
External Dimensions (WxDxH mm) [?]
1270 x 1100 x 1800

Description

The FX 125 extractors are self-contained, high efficiency, envelope type units of very compact design. They incorporate fan, motor and filter assemblies with mechanically operated shaking mechanisms and are designed to accept combinations of fan volume/cloth area to meet the varying applications required in industry.

Features

  • Full width hinged access doors, with quick release fasteners, provide easy inspection or removal of fan, motor or filter.
  • The automatic electrical shaking mechanism control unit consists of contactors and time delay relays so that when the stop button is operated, the fan motor is allowed to run down before the shaker motor is automatically energised. This then runs for a pre-determined period, after which the whole system is shut down and reset.
  • The FX filter performance enables the recirculation (in most circumstance) of filtered air back into the process area, promoting cost savings through energy efficiency by the return of treated air.

Technical Specifications:

  • FX 125
  • Capacity / Duty 1000CFM // 1700 m³/hr @1750 pa
  • Fan size 2.2kW. //3 Hp
  • Filter area 125ft² // 12m²
  • Bin capacity 2.3ft³ // 66litres
  • Noise level 76dB(A)
  • Overall dimensions 1270mm x 1100mm x 1800mm
  • Weight 275kg
  • 5 Pin plug fitted

The above design duties are based on an 8:1 cloth to air ratio.

What are Shaker Dust Collectors?

Shaker Dust Collectors contain a number of woven bags, which are fixed onto rails and use their surface area to capture dust as it is drawn through the extraction unit by its fan.

Bags are periodically cleaned by rapidly shaking the bags through a shaker motor and linkage system which removes the filtered dust from the bags and into a collection bin.

These units are commonly used in foundries, steel mills, the mining industry, power plants, and smelting industries.

How do Dust Extractors Work?

Dust collection systems work in a variety of different ways but all have general principles in common. They draw process dust and particulates from the air through a filter that first captures and separates the matter, and then discharges decontaminated air back into the workplace or environment.

Dust extractors are used in many different and varied industries and so different demands are made of them; however all have common components such as a blower (or fan), dust filter, filter cleaning system, dust container and dust removal system.

Five common types of dust collection equipment are fabric filter baghouses, inertial separators (like mechanical cyclones), cartridge collectors, wet scrubbers, and electrostatic precipitators.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

pdf icon Print / Download Filtex FX125 Self Contained Shaker Type Dust Extraction Unit Datasheet

Additional files

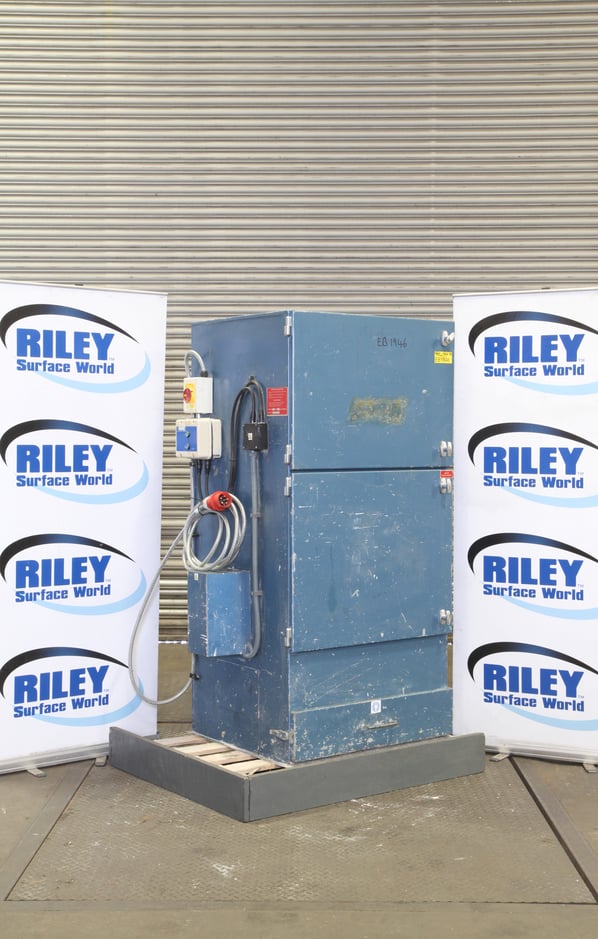

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
