Rollwasch SmartLine Round Bowl Vibratory Machine

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
12 August 2022 11:00 GMT while stocks last
Part of a Direct Site Clearance
Rollwasch Wheelabrator Vibro Finishing
Seen working by RSW, Ex demonstration, Current Model
Stock No
Year of Manufacture
20516 & 20519
Seen working by RSW, Ex demonstration, Current Model
330 Litres gross, 210 Litres net
Bowl with separator
Other Info
Footprint 2100 x 3500 x 3000 mm
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm) [?]
1286 x 1286 x 1162 & 1900 x 2385 x 2956


Easy to Separate and Unload

RVS series offers the very highest specification including all key extras as standard

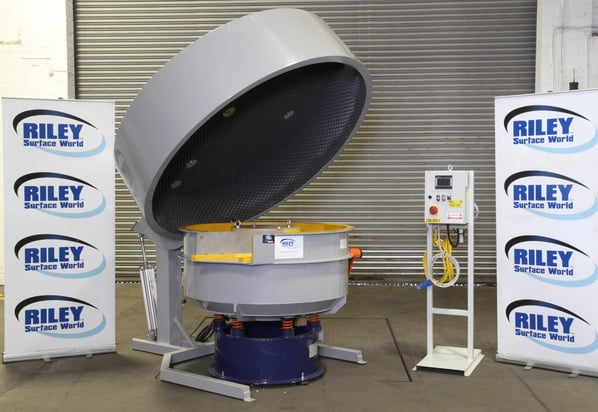

The Wheelabrator Vibro RVS-3 (330/210 litre) vibratory bowl with separation and unload is designed for processing both smaller-medium size components and lower volume batches as well as protypes. Well suited for process metallic components and Additive Manufactured 3D printed components alike.

The programable touch screen control panel and frequency inverter variable speed drive 870 – 1500 rpm coupled with the CMS-80 water and compound metering system gives the operator ultimate control over the process.

The extra deep acoustic noise reduction semi-enclosure offers excellent noise suppression over the standard vibro lid (noise reduction of up to 10 dB depending on media selection and components).

The RVS-3 machine is positioned at a very comfortable operator working height and has a manual operated and reinforced unload flap, which provides lift to the spacious interchangeable separation sieve screen providing efficient evacuation of components and return of media to the process bowl. A high level specification finishing machine with key extras as standard.

Suitable for a wide range of applications including:

  • Deburring
  • Flash Removal
  • Polishing
  • Grinding
  • Smoothing
  • Superfinishing
  • Edge Breaking
  • Surface Blending
  • Pre-Anodised and Chemical Plate Finishes
  • Metallics, Ceramics and Additive Manufactured 3D Printed Components

Main Features:

  • 330/210 litre two-part moulded cast polyurethane lining for inner chamber protection
  • Manually operated and reinforced unload flap
  • Components and media separation sieve screen
  • Oil and abrasion resistant working bowl for longer life
  • Extra deep acoustic noise reduction semi-enclosure
  • Touch screen control panel for simplified operation
  • Variable speed frequency invertor for optimum process control with quick turn speed dial
  • CMS-80 Meter Unit to ensure controlled delivery of water and liquid compound dosing
  • Compact equipment stand for control panel and metering station
  • Double flange vertically mounted drive motor featuring long life bearings for increased durability


  • RVS-3 vibratory bowl
  • Extra deep acoustic noise reduction semi-enclosure
  • Touch screen control panel with variable speed dial
  • CMS-80 water and compound metering station
  • Freestanding control panel and metering station stand

 Technical Details:

  • Ex-demo 2017 machine with only 77 runtime hours (almost like new)
  • 330 Litre gross chamber
  • 210 Litre net process chamber
  • Chamber width 330mm
  • 2 kW drive motor (16 Amp)
  • Frequency Invertor - Variable Speed Drive 870 – 1500 rpm
  • 230v Blue Euro 3-Pin (2+E) socket
  • Theoretical maximum diagonal component dimension = 286 mm (ideal batch maximum diagonal 143 mm)

A very versatile finishing machine with components separation and unload. What’s not to like about this fantastic workhorse of a machine.


pdf icon Print / Download Rollwasch SmartLine Round Bowl Vibratory Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
