Machines & equipment for sale

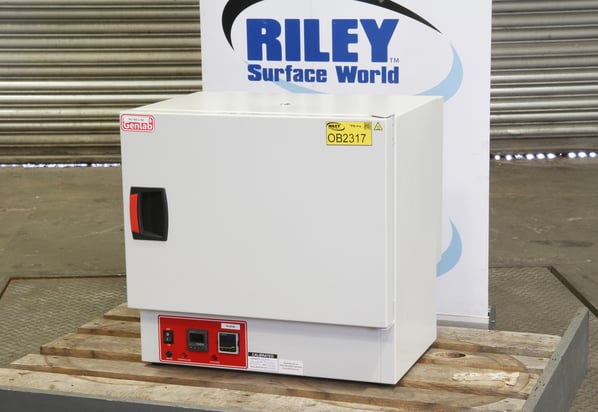

Genlab Oven Mino 50

Stock No
OB2317
Manufacturer
Genlab
Model
Mino/50/F/EPC3016/ETH
Year of Manufacture
2017
Serial
20h087
Condition
From a working environment, Excellent Condition, Current Model
Internal Size (WxDxH mm) [?]
455 x 285 x 320
Max Temp
250°C
Other Info
Calibrated 2021
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
70
External Dimensions (WxDxH mm) [?]
612 x 590 x 605

Description

The GENLAB general purpose oven offers a highly efficient, reliable, cost-effective unit to suit most drying, warming and general laboratory applications.

Design

  • The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium.
  • Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
  • The Eurotherm digital controllers are conveniently fitted below the door.
  • Heated by Incoloy sheathed elements.
  • Rear-mounted air circulation fan.
  • Small roof vent port.

Controls

  • Temperature controller is a Eurotherm EPC3016.
  • Overtemperature controller is a Eurotherm  P116.

Specifications

  • Internal dimensions: 330mm x 490mm x 330mm.
  • External dimensions: 590mm x 610mm x 470mm.
  • Number of shelves: 1.
  • Number of shelve positions: 3.
  • Weight: 26kg.
  • Volume: 50 litres.
  • Temperature range: 40 to 250ºC.
  • Fluctuation: +/- 0.75ºC.
  • Power Requirement: 240 Volt single phase.

Construction

  • Easy clean powder coated body.
  • Coated mild steel chamber.
  • Direct reading thermostat.
  • Safety overheat thermostat.
  • C.E. compliant.

pdf icon Print / Download Genlab Oven Mino 50 Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
