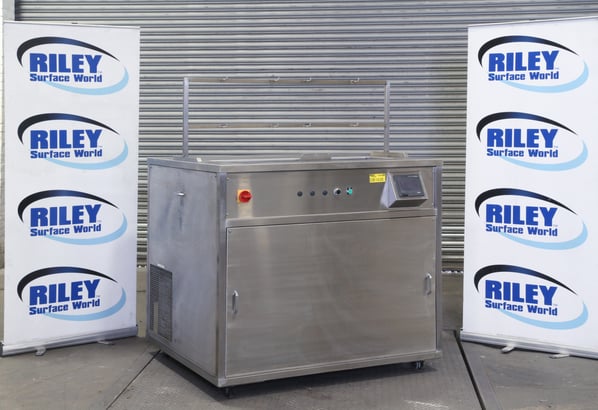

CC Hydrosonics Sensotronic AVD 500 Ultrasonic Solvent Precision Cleaning Plant

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Buy Now Add to Quote Contact Us
Stock No
DB1438
Manufacturer
CC Hydrosonics
Model
AVD500 Ultrasonic Solvent Cleaner
Serial
440052006
Condition
From a working environment, Excellent Condition
Work Envelope (WxDxH mm) [?]
500 x 300 x 600mm
Process Stages
4, Solvent wash, U/sonic, Rinse, Dry
Other Info
Minimising Energy and Solvent Emissions
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
450
External Dimensions (WxDxH mm) [?]
1560 x 1330 x 1720

Description

The Sensotronic was the first twin sump immersion cleaning system to incorporate the technical capability of running most non flammable solvents via a simple temperature adjustment.

This opens up a huge market in electronics or any precision cleaning application where a solvent process is deemed necessary. Its unique patented design maximises output efficiency whilst minimising energy and solvent emissions.

Features

  • Mitsubishi G.O.T. 1000 graphic operation terminal.
  • Touch screen control for programming.
  • Low-level safety solvent sensors.
  • High sump contamination indication.
  • Four-sided condensing coils.
  • Electronic vapour control system.
  • 100% freeboard area.
  • Twin compressor refrigerated freeboard cooling system.
  • High vapour level safety cut out device.
  • Extraction system.
  • Pump and filtration system (Amazon filter with 7 spare cartridges).
  • Fully stainless steel construction.
  • Manual ultrasonic start control.
  • Manual cover/lid.
  • Comprehensive operating manual.

Capacities

  • Boiling Sump: 18.75 Litres.
  • Boiling Immersion: 45 Litres.
  • Ultrasonic Immersion Sump: 54.75 Litres.
  • Extraction Ducting: Ø150mm.

Process Cycle

  • Lower components into the boiling sump (left) for the desired vapour cleaning time.
  • Transfer the components to the ultrasonic distillation immersion tank (right) and start the ultrasonics for the desired time.
  • Raise the components to the vapour area for between 15 and 30 seconds.
  • Lift the components to the freeboard area of the tank and watch them dry usually between 1 and 4 minutes.

Solvents/Cleaning

  • Most none flammable solvents can be used.
  • Primary fridge 1.8kg of R404A refrigerant.
  • Secondary ultra low-temperature freeboard fridge.
  • A quick and easy method of removing tar, oil, grease and other insoluble solids from all types of components.

 Ultrasonics

  • Powered by a Crest 'trusweep' adjustable generator.
  • Frequency range 38-42kHz.
  • Ultrasonic output power 500 watts.
  • 240Volt.



Summary of Vapour Degreasing

Rated for its effectiveness against oils and grease, vapour degreasing is a process that is closely related to water-based degreasing but uses non-flammable solvent instead of water based solutions.

Taking place in a twin slump tank, vapour degreasing is made up of two stages (minimum), rinse and vapour. The simplicity of the process is a major contributing factor to its success as it is known as a very effective and reliable cleaning method.

For more on the process visit our blog Vapour Degreasing Made Simple

pdf icon Print / Download CC Hydrosonics Sensotronic AVD 500 Ultrasonic Solvent Precision Cleaning Plant Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
