Vacublast (Wheelabrator) Ventus 92PR Heavy Duty Pressure Fed Shotblast Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
SB961
Manufacturer
Vacublast (Wheelabrator)
Model
Ventus 92PR
Year of Manufacture
11/1999
Serial
300040
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
900 x 780 x 680
Work Handling Method
Manual
Other Info
Excellent Media Recovery & Dust Control
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
940 x 940 x 1750mm

Description

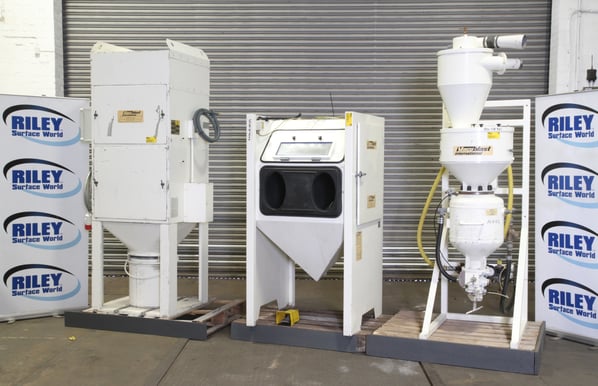

The Ventus 92 is a heavy duty robust machine with an equally powerful performance to match. The unit comprises of a folded and welded steel chamber with front armlets, large viewing window and an internal viewing light.

Cabinet

  • Manually activated via foot pedal.
  • Twin gauntlet are access.
  • Right hand side opening loading door.
  • Internal lighting.
  • Viewing glass screen.
  • Rubber lined walls for protection.
  • Mesh grid base plate.

Cyclone Media Separation and Pressure Pot

The separate power pack includes a media grading and waste-dust separator cyclone mounted above a 30 litres pressure feed pot.

Dust Extractor

  • DCE Unimaster UMA152K5
  • Shaker motor
  • 2.2kW. // 3Hp
  • 15² meters of filter area.
  • 50 litres waste collection bucket

Applications

  • Rust and heat scale removal
  • Paint stripping
  • Surface texturing
  • Preparation for painting, bonding and plating
  • Corrosion removal
  • Shot peening
  • General component cleaning
  • Cosmetic finishing
  • Mould cleaning
  • Glass etching

The Ventus has the ability to blast at up to 100psi with a wide range of abrasives and would have an average
consumption of 82cfm at this pressure with a average size nozzle.

The sophisticated cyclone system enables the cut point of the separation of reusable abrasive from waste to be accurately set allowing maximum separation of the reusable abrasive and the waste dust.

With the aerated feed system the abrasive blasting stream can be set accurately and consistently even at low blasting pressures making this a very versatile machine.

Addition Features Include:

  • Tech SpecAir consumption 2.1m³@ 7bar using a 6.5mm nozzle
  • 30 litres pressure vessel
  • Pressure control 5-100psi

Recommended grades and typical types of media

  • Aluminium oxide 24/30-180/22
  • Chilled iron Go5-G24
  • Glass bead 85-600 microns

Overall Dimensions

  • Internal cabinet: 900mm x 780mm x 680mm
  • Dust extractor: 1150mm x 1060mm x 2400mm
  • Cyclone and pressure pot: 700mm x 900mm x 2400mm

What is Shot Blasting?

Shot Blasting can be used as a catch all term for a wide range of similar industrial processes. It is also called abrasive cleaning or abrasive surface finishing. During the shot blasting process a media material is fired at an object to remove remove burrs, flashing, paint, scale or rust and clean and smooth (or sometimes intentionally roughen) the surface.

There are several mechanical methods used to propel the media material including using compressed air or water streams, or airless methods such as wheel blasting.

The media used also differs depending on the results needed but the catch all term is shot, hence shot blasting. The shape, size and weight of the media will determine the outcome. Frequently a metal shot is used including steel grit, copper shots, and aluminum pellets. Some methods of shot blasting use silica sand (sand blasting - not in some countries due to health risks), glass beads (bead blasting), sodium bicarbonate (baking soda) or crushed nuts shells or kernels.

pdf icon Print / Download Vacublast (Wheelabrator) Ventus 92PR Heavy Duty Pressure Fed Shotblast Cabinet Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
