Hodge Clemco Enviraclean IND1250 Pressure Fed Heavy Duty Shotblasting Cabinet

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Stock No
SB960
Manufacturer
Hodge Clemco
Model
IND 1250 comp C
Year of Manufacture
2012
Serial
908973
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
1225 x 940 x 500
Work Handling Method
Manual Loading with Rotary Table
Other Info
Upmarket Dust Extractor by Nederman
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
Cabinet Only 1375 x 1250 x 1900mm

Description

Pressure feed hand blast cabinets are essential when removing heavy corrosion, tough coatings or when high production rates are required. With a cleaning rate up to 5 times the speed of a suction cabinet and suitability for use with heavier, long life abrasives such as iron and steel. Pressure feed machines are commonly used in high production environments or on applications such as alloy wheel refurbishment and cleaning heavy castings.

Feature Include:

  • Two door opening to either side with an upper glass viewing panel.
  • Interlocked doors.
  • Large work chamber area.
  • Rotary turntable.
  • High visibility chamber with large viewing window and internal lighting.
  • Glove aperture carefully designed to accommodate users of different heights and facilitate easy and safe component handling.
  • Supplied with a Hodge Clemco 1446 PD5500 blast pot and cyclone pre-separation unit.
  • Manual stop/start.
  • Supplied with a matching Nederman Filtration reverse pulse dust collector.
  • Fully rubber lined cabinet.
  • Nederman MJC Mini reverse pulse dust extractor with 1.1kW fan.

Suitable Materials Processing:

Metals

  • Removal of corrosion, millscale, coatings
  • Deburring
  • Peening
  • Surface preparation
  • Cosmetic surface finishing
  • Brazing flux removal

Plastics

  • Composites
  • Rubber
  • Deflashing of mouldings
  • Texturing of plastic surfaces
  • Coating removal from composites and plastics
  • Mould cleaning
  • Surface etching for material bonding

Electronics

  • Epoxy resin removal
  • Glass etching and frosting

Decorative or Functional Etching

  • Ceramics
  • Etching or removal of imperfections
  • Wood, ageing or distressing

Specifications

Working Area in Cabinet: 1225mm x 940mm x 500mm (WxDxH) above table.

  • External cabinet: 1375mm x 1250mm x 1900mm
  • Pressure pot external dimensions: 800mm x 700mm x 2250mm
  • Extractor external dimensions: 1125mm x 925mm x 1600mm
  • Air consumption ( range with a 7mm nozzle): 15-40 cfm
  • Dust collection bucket: 70 litres

What is Shot Blasting?

Shot Blasting can be used as a catch all term for a wide range of similar industrial processes. It is also called abrasive cleaning or abrasive surface finishing. During the shot blasting process a media material is fired at an object to remove remove burrs, flashing, paint, scale or rust and clean and smooth (or sometimes intentionally roughen) the surface.

There are several mechanical methods used to propel the media material including using compressed air or water streams, or airless methods such as wheel blasting.

The media used also differs depending on the results needed but the catch all term is shot, hence shot blasting. The shape, size and weight of the media will determine the outcome. Frequently a metal shot is used including steel grit, copper shots, and aluminum pellets. Some methods of shot blasting use silica sand (sand blasting - not in some countries due to health risks), glass beads (bead blasting), sodium bicarbonate (baking soda) or crushed nuts shells or kernels.

pdf icon Print / Download Hodge Clemco Enviraclean IND1250 Pressure Fed Heavy Duty Shotblasting Cabinet Datasheet

Additional files

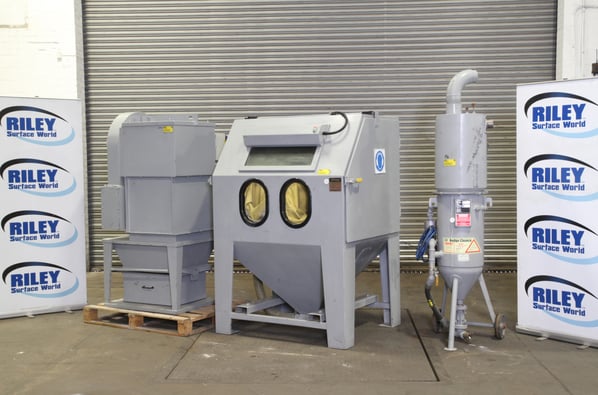

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
