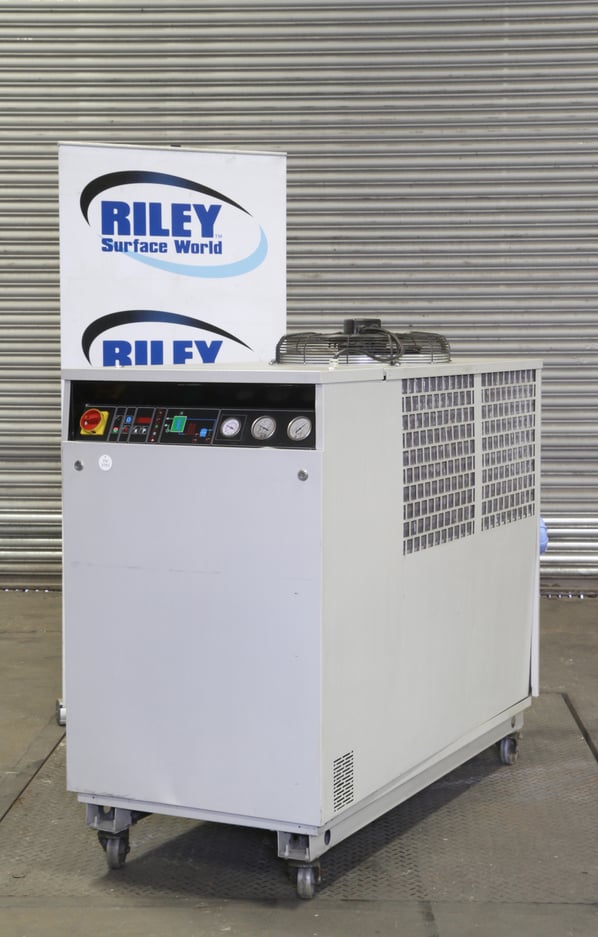

Industrial Cooling Systems (ICS) TAE EVO 081 Packaged Air Cooled Refrigerated Process Water Chiller

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
CB625
Manufacturer
Industrial Cooling Systems (ICS)
Model
TAE EVO 081
Year of Manufacture
REF 2003
Serial
1200906107
Condition
Good Condition, Current Model
Ave. cooling capacity
28.4 kW @ 15°C
Ave. Water Flow Rate
4.9/9.6 with 2.5/1.3 bar
Other Info
Refrigerant R407c
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
556
External Dimensions (WxDxH mm) [?]
830 x 2150 x 1450

Description

This fully packaged chiller contains a single Maneurop fully hermetic compressor with optional non-ferrous food safe cooling circuit.

  • There is also an integral 140 litre thermal buffer tank and standard 2.5 (approx) bar circulation pump. With quick-release water and power connections, this chiller has been designed for a fast installation and start up.
  • The chiller can be supplied with an atmospheric or pressured set-up and can manage a wide range of temperature requirements (+20°C to –0°C).
  • The 28.4kW chiller contains a 140 litre buffer tank and a circulation pump, which draws from the tank to supply the incumbent cooling system. The chiller cycles off when the set outlet temperature in the evaporator has been achieved.
  • This lightweight has been built to manage small tool cooling and process applications. This chiller can be run in parallel with other chillers in our range and has been designed to connect to AHU’s.

Technical specifications

  • Refurbished with new compressor fitted in 2003.
  • Dimensions: 1860mm x 760mm x 1450mm
  • Weight: 474kg
  • Water connections: 1 1/2” Female BSP
  • Max/Min water flow: 4.9/9.6m3/h with 2.5/1.3 bar
  • Running current: 19 Amps
  • Power supply:  400(±10%)/3/50
  • Max power absorbed: 6.3kW
  • Power sound level: 53.6dB(A) @ 10m
  • Nominal cooling duty:  28.4kW @ 15°C

Principles of Refrigeration

A refrigerant cooling system is a closed loop system which contains a refrigerant gas. This gas is compressed and pressurised through a compressor and cooled through a heat exchanger and fan arrangement to produce a high pressure, liquid refrigerant.

This liquid refrigerant then passes through a hot gas expansion unit, where it is allowed to expand and ‘evaporate’ back into a low pressure gaseous refrigerant. The change of state from a liquid to a gas draws heat from the surrounding area. This is normally carried out within a high conductivity heat exchanger allowing it to draw and remove heat from the liquid or air that needs cooling.

The gas then re-enters the compressor and the process is repeated. As such electrical energy put into the compressor pump can be used to produce a cooling or chilling effect.

Key components;

  • Compressor: Produces high pressure gas
  • Condenser: Liquefies and cools the refrigerant by passing it through a heat exchanger
  • Expansion valve: Controls the flow of the liquid refrigerant to the evaporator.
  • Evaporator: Allows the refrigerant to turn back into a gas, whilst using the drop in temperature to remove heat from the external processes which require cooling

pdf icon Print / Download Industrial Cooling Systems (ICS) TAE EVO 081 Packaged Air Cooled Refrigerated Process Water Chiller Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
