Machines & equipment for sale

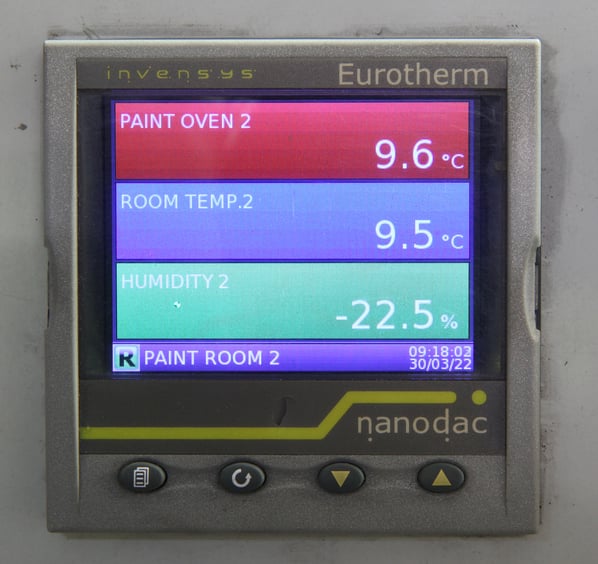

Eurotherm Nanodac Recorder / Data Logger

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability
Available for immediate collection
Condition
Excellent Condition, Current Model, Seen powered at RSW
Stock No
MB764
Manufacturer
Eurotherm
Model
Nanodac VL/X/X/LRR/XX/TS
Year of Manufacture
April 2011
Serial
GB77239-1-2-1571-FC
Condition
Excellent Condition, Current Model, Seen powered at RSW
Max Temp
Temperature / Data recording
Other Info
Up to 4 inputs
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
96 x 96 x 100

Description

Eurotherm Nanodac chart recorder / data logger. High integrity graphical data recording aids statutory compliance across regulated industries. World class PID control for greater performance and process reliability.

Its high integrity graphical data recording aids statutory compliance across regulated industries. World class PID control for greater performance and process reliability.

Specification

  • Supply voltage: 24 volts
  • Logic/Relay/Relay
  • Communications protocol: Modbus TCP/IP slave (default)
  • Tamper resistant data recording methodology trusted by auditors
  • Electronic signing and authorisation compliant with 21CFR Part 11
  • Powerful batch functionality
  • Eurotherm PID algorithm with 2 control loops
  • Cascade control with advanced autotune
  • Dual programmer
  • High accuracy universal inputs
  • Graphical wiring
  • USB removable data storage facility
  • Modbus TCP/IP master/slave
  • EtherNet/IP client or server
  • BACnet slave
  • Sterilizer application block
  • Relative humidity application block
  • Steam flow application block
  • Zirconia probe application block
  • Multi-language support
  • Compact design



Model Code

  • Nanodac/VL/X/X/LRR/XX/TS/XXXX/XXXXX/ENG/XXX/XXXXX/XXXXXX//

pdf icon Print / Download Eurotherm Nanodac Recorder / Data Logger Datasheet

Additional files

Data sheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
