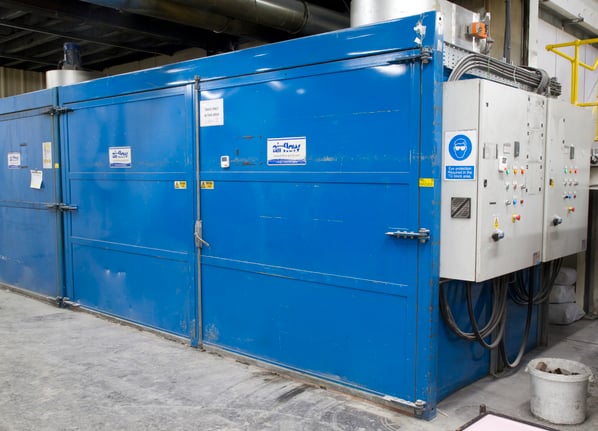

Airflow Group 4m x 2m x 2m Electric 250°C Oven (No.5)

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
28 July 2022 15:00 GMT while stocks last
Part of a Direct Site Clearance
4m Wide 250°C Electric Ovens Clearance
Condition
From a working environment, Seen working by RSW, Excellent Condition, Current Model
Location
Rochdale, UK
Stock No
OB2298JS
Manufacturer
Airflow Group
Model
4 x 2 x 2 Electric 250°C
Year of Manufacture
2014
Serial
AIRO
Condition
From a working environment, Seen working by RSW, Excellent Condition, Current Model
Internal Size (WxDxH mm) [?]
4000 x 2000 x 2000
Max Temp
250°C
Other Info
Max Kw rating: 90kw very easily reduced
Location
Rochdale, UK
External Dimensions (WxDxH mm) [?]
4750 x 2180 x 2500

Description

Airflow Premier Box & Batch Oven

Airflow Box ovens are of the hot air recirculation type. With this design, the Oven interior is heated by a fan assisted convection process. The heated air is constantly recycled around the Oven’s interior to maintain superb temperature consistency.

Airflow Ovens are intended for all Industrial Drying, Stoving, Curing and Heating applications from 30˚ to 250˚C. In normal use, the oven operates at considerably reduced power to simply maintain its internal temperature.

Airflow Oven systems offer simple and very accurate digital temperature control (removed due the the information stored in them). The ovens are fuel efficient and responsive due largely to the utilisation of the current heater technology as well as the oven‘s fully integrated, insulated construction.

Airflow Ovens incorporate electronic over temperature protection, a powered fume exhaust system, and an internal safety handle to prevent operator entrapment.

Applications:

  • Paint Stoving
  • Epoxy/Polyester Powder Curing
  • Lacquer Drying
  • Hydrosetting
  • Moisture removal
  • Plastic Curing
  • Rubber softening
  • Metal annealing
  • Spring stress relieving
  • Excellent Heat Distribution


A good distribution of heat is vital for successful process.
To ensure good performance, all Airflow Ovens incorporate medium pressure multi vane centrifugal fans complete with scroll casings to provide a very positive and well controlled air movement. This is usually at least four complete air recycles per minute. Large duct work ensures that the high air volume will not disturb the product.

Fully Pinned Construction
All of the oven panel work is pinned together during final assembly. For this reason the oven can, if required, be delivered ‘Flat Packed’ to site to make delivery and positioning on site particularly simple. Furthermore,
future modifications to the oven’s size or site removals are also much simplified.

Fully Insulated Heated Box and Recirculation Fans
The oven’s heat exchanger enclosure incorporates integrated, internal, plug type centrifugal air recirculation
fans with external motors. With this design none of the hot fan components are in any way exposed to colder
air. Not only does this design offer a clean and smooth appearance to the Oven, but also heat losses from
the Fans are virtually eliminated. Furthermore, a fully insulated heater box prevents radiated heat from being
projected into the Oven in any uncontrolled manner.

Door Safety System
Airflow Box Ovens incorporate an internal safety door handle to prevent operator entrapment. .

Cool Exterior Surfaces
Care has been taken in construction of Airflow Ovens to minimise heat transfer through the walls and doors.

Electronic Over Temperature Protection
As a totally independent module to the master oven control system, Airflow Ovens also incorporate a thermal
sensor mounted within the air heater box, this sensor is connected to an independent electronic temperature
controller mounted inside the control panel. In the unlikely event that the heater box temperature should exceed the Oven’s design parameters, the heaters are shut down and the Oven automatically shuts down.

All Insulated Galvanised Steel Construction
To ensure a very long service life the oven panel work is made up from high grade galvanised steel with high density mineral wool slab insulation filling. This is of 100mm thickness

Fume Exhaust System
Airflow Ovens incorporate a powerful and positive, fan assisted, fume exhaust duct system. The exhaust system never relies merely on convection evaporation and it can be adjusted to suit different applications.

Feature Check list:

  • Digital temperature controller
  • Accurate and stable heat control
  • All pinned construction – easily modified or moved
  • Galvanised Steel construction.
  • High density mineral wool insulation
  • Fully insulated heater chambers and fans
  • Internal door release
  • Safe and adaptable control systems
  • Electronic over temperature protection device (removed)
  • External mounted fabricated steel doors
  • Full compliance with safety and environmental legislature

** Overall height including motor - 3182mm **

pdf icon Print / Download Airflow Group 4m x 2m x 2m Electric 250°C Oven (No.5) Datasheet

Additional files

Dimensional Drawing

Operating and Installation Instructions

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
