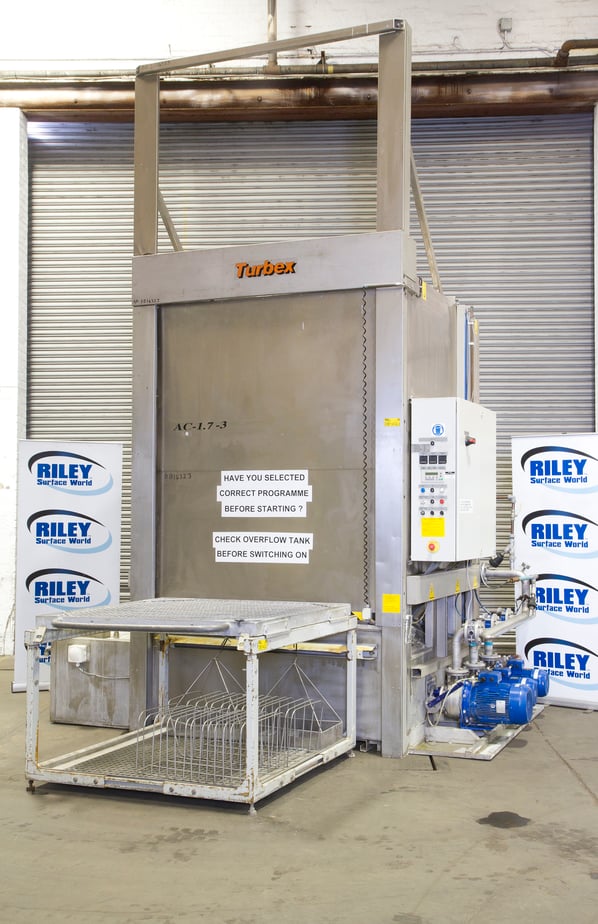

Turbex AC-17-3 Heavy Duty 3 Stage Front Loading Spray Wash Plant.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DB1432J
Manufacturer
Turbex
Model
AC-17-3-LO
Year of Manufacture
2005
Serial
1648605
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
1300 x 1300 x 1650
Process Stages
3 Stage, 2 x Wash Plus a Rinse
Other Info
Additional Pump for Spray Lance
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
3000
External Dimensions (WxDxH mm) [?]
3400 x 2200 x 5100
Delivery
Your delivery options

Description

Turbex AC 1.7 Multi Stage Rotary Basket Wash with roll in platform trolley 1320mm x 1320mm Note useful working height of 1650mm.

Overview

Multi Stage cleaning machines are intended for the aqueous cleaning of medium and large components, where high cleanliness requirements demand a multi-stage cleaning process. They are also used where the process itself requires a multi stage process e.g. iron phosphating. This type of cleaning machine is commonly used in the aerospace industry for both production and repair and overhaul purposes.

The cleaning process is carried out with a rotating spray system with nozzles. The hot detergent is sprayed from all directions onto the components with a high mechanical effect. This is then followed by additional detergent and/or rinsing stages to achieve a high level of cleanliness. In each stage, the liquid is filtered before entering into the tank and is then re-circulated.

Standard Features

  • Stainless steel construction.
  • Stainless steel rotating spray system.
  • Electrically operated lifting door, automatic.
  • Side accessible tanks for ease of service access.
  • Stainless steel filter baskets.
  • Lockable tank lids.
  • Power driven spray boom.
  • Thermostatically controlled electric heating with angled heaters for easy removal.
  • Fully insulated machine.
  • High flow rate and pump pressure.
  • PLC controlled operation.
  • Low level alarm with heating and pump protection.
  • Weekly timers for heating and oil separation.
  • 24v control circuit.
  • Emergency stop button.
  • Load platform/trolley.
  • Automatic water refill.
  • Steam extractor fan.
  • 3 phase 415volt 50hz 3 x 63amp.
  • At end of cycle, door will slightly open to allow steam to be extracted before fully opening for access to chamber.
  • 3 tanks with 3 independent pumps.
  • Each tank has a separate drain tap.
  • Additional pump for spray lance.
  • 2 x work baskets 960 x 750.
  • Total connected load  49kW.
  • Pumps 7.5kW : 4kW and 4kW

pdf icon Print / Download Turbex AC-17-3 Heavy Duty 3 Stage Front Loading Spray Wash Plant. Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
