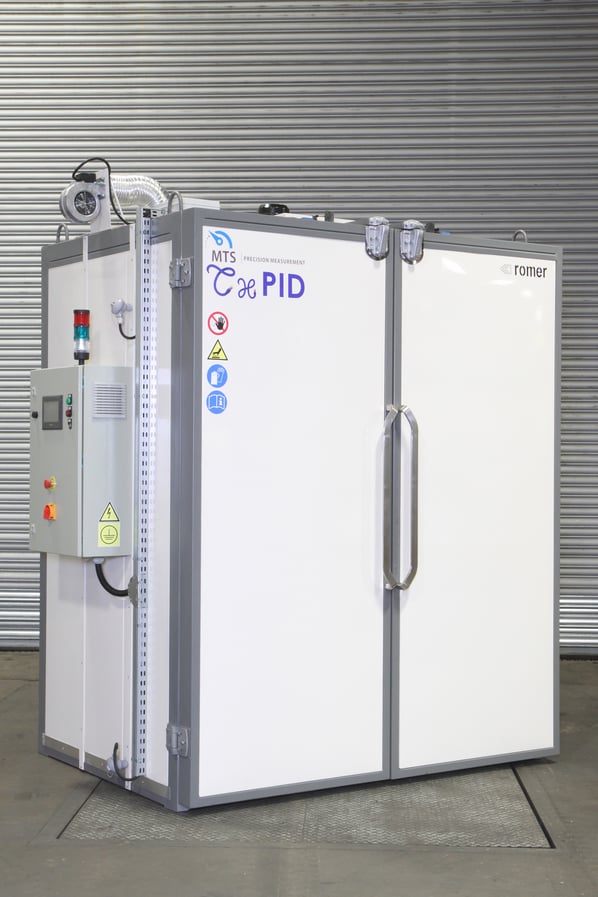

Romer 1.5m x 1.2m x 2.0m 225°C Electric Oven

Direct From Site Clearance

Normal Retail Price [?]
£ Login or Register for price
Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
02 June 2022 15:00 GMT while stocks last
Part of a Direct Site Clearance
Unused Powder Coating Oven & Booth
Condition
Brand New, Unused
Location
Leicestershire, UK
Stock No
OB2291J
Manufacturer
Romer
Model
SLS-150
Year of Manufacture
2018
Serial
521011920321131
Condition
Brand New, Unused
Internal Size (WxDxH mm) [?]
1500 x 1200 x 2000
Max Temp
225°C
Other Info
AS NEW. Forced Air Extraction
Location
Leicestershire, UK
Weight (kgs)
1200 kg
External Dimensions (WxDxH mm) [?]
2020 x 1500 x 2710

Description

This oven was purchased brand new in 2020, along with a Romer Powder Coating Booth.
Photos are taken prior to being sold in 2019.
Both are now available, unused, at a reduced price Direct From Site.

£15,000 for both machines
This package price is discount to buying these individually and an even bigger discount compared to buying brand new!

These ovens are from the well respected Polish manufacturer, Romer, and include upgraded controls and build features for the UK market, as designed by Riley Surface World. Romer Electric Ovens are 225°C general purpose, electric, batch ovens from 3.6m³ upwards. Ideal for a vast range of low temperature thermal processes such as drying, curing and pre-heating.

Constructed from a heavy duty steel box sectioned frame with infilled 160mm and 300mm thick insulated galvanized panels and externally clad in a hard wearing powder coated finish.

During use air is circulated around the oven by a roof mounted fan through adjustable hot air vents in the side panels.
Ventilation of air during or after the cycle is passive, with programmable vents, or a forced air ventilation is available.

The MTS + ThPID iCure Controller included, improves the functionality of the oven by offering user control of all of the processing parameters and well as offering full tractability not only of the process, but also power consumption. The controller comes complete with additional PC software, so any data stored in the controller can be recorded and transferred to your own PC for review and archiving.

Typical applications

  • Powder coating curing processes
  • Water based paint stoving
  • Curing resins, rubbers and composites materials
  • Pre heating and low temperature heat treatments
  • Processing plastics
  • Thermal bonding
  • Drying applications
  • Thermal testing etc.

Benefits and Features

  • Forced air circulation with roof mounted fan.
  • Forced air ventilation/extraction.
  • Multi positional hot air return vents for uniform heat distribution.
  • Temperature calibration achieved by adjustable holes in side walls.
  • Double loading doors with adjustable, explosion proof, slam shut positive, door locks.
  • Design tested to better than ± 5°C over a 9 point survey.
  • Controlled and automatic exhaust damper for programmed fume ventilation as you need for your process.
  • Insulated floor with trolley entry channels.
  • Galvanised coated internal work chamber sheets.
  • Modular electric heating system.
  • Swiss made finned elements, easy access panel, and an innovative design offering instant heat generation.
  • Silicone door seals.
  • 240mm + insulation.
  • CE marked.
  • Product trolley supplied.
  • 1 year manufacturer warranty.

Romer Oven Features

Controls

  • ThPID control system offsets the effect of heating inertia called hysteresis. The standard solution is based on a circuit that switches elements on and off with constant power. ThPID dynamically adjusts the voltage at the setpoint temperature reducing power user and increasing accuracy.
  • MTS control system provides more accurate temperature measurement by using multiple sensors across the oven chamber.
  • Side mounted control panel with HMI display and an easy view status sounder and light bar.
  • Over temperature protection.
  • PLC controlled with iCure 7" Touch screen HMI panel with programmable functionality.
  • Large colour touch panel, providing full control of all operational parameters.
  • Save up to 20 programs and 10 consecutive triggers governing ramps, dwells, time and temperatures.
  • Built in calendar.
  • Process memory review - internal memory for 20 cycles.
  • Start timer - begin your process before you reach the factory.
  • On-board energy consumption monitoring and recording.
  • Process memory review .
  • ModBus MASTER/SLAVE RS485 compatible.
  • USB port for data capture to PC based iCure analysis software.
  • iCure PC analysis software.

Romer - Experienced Oven Manufacturer

Romer Industrial OvensThe outstanding feature of Romer ovens is the quality of manufacturing. Everyone who stands in front of a Romer, from buyers to calibration engineers, have commented how well constructed they are.

Romer have been manufacturing ovens and powder coating machines from their base in central Poland for over 25 years and export to 40 countries worldwide. Their 8,000m² facility employs over 150 staff and has passed Riley Surface World's inspection and auditing requirements.

Riley Surface World and Romer have secured a partnership to service the UK market with large (over 1m²) ovens up to 225°C. These ovens are perfect for curing powder coating but the range of applications is large.

pdf icon Print / Download Romer 1.5m x 1.2m x 2.0m 225°C Electric Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
