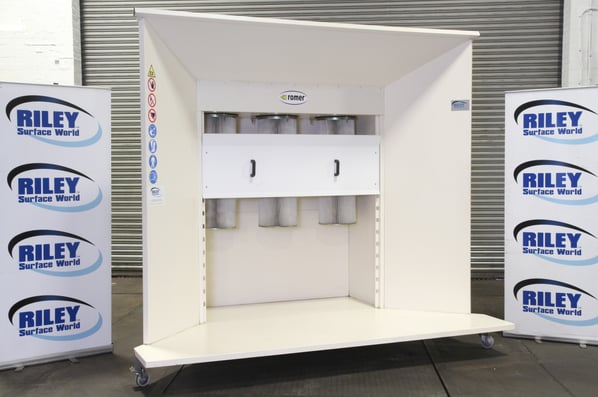

Romer KPO 3N Powder Coating Booth

KPO 3N Powder Coating Booth

Stock No

GB849J

Manufacturer

Romer

Model

KPO-3N

Year of Manufacture

2020

Serial

3030120113381

Condition

Brand New, Unused, Current Model

Work Envelope (WxDxH mm) [?]

2800 x 920 x 2240

Process Stages

10200m3/h extraction

Other Info

As New

Location

Leicestershire, UK

External Dimensions (WxDxH mm) [?]

2860 x 1700 x 2560

Description

The Romer range of spray booths allow for painting multiple components by hand directly placed on the work table or suspended from the trolley rail.

Features of the KPO range of manual booths

Explosion-proof construction

These ATEX compliant booths are carefully designed to prevent explosive mixes from the process of powder application. Every single component is carefully selected to minimise the risk of fire.

Romer HMI Panel

The latest booths have now been equipped with a touch screen multilingual HMI panel allowing the parameters of operation and filter cleaning to be easily set and adjusted by the operator.

Aluminum fans

Aluminum fans are safer, to use than standard steel fans as they in themselves won't cause sparks to appear within the metal casing. Thanks to their low weight they also consume less energy and thus less costs. They are also very quiet working at a noise level of 74-dBa, with the motor being hidden inside the booth housing making the booth even lower in height.

Sealed filter installation

Thanks to the use of supporting flanges installing and uninstalling of the filter elements is made easy. The design of the filter with multiple securing locations provides a tight seal which improves the quality of the filtration process and face velocities within the booth.

Automatic filter cleansing

Romer booths are equipped with an electronic automatic filter pulse cleaning system. The booth control system has an adjustable timer for both the cleaning interval, and the time of the impulse, so that the filters are automatically cleaned whilst in use to maintain the extraction rate of the booth in an optimum condition.

We know from experience that it's hard to expect an operator to regularly clean the filters, but thanks to this system the operator won't have to worry about it anymore.

Reverse pulse cleaning

The Romer powder booths are equipped with integral pressure reservoirs , which are responsible for the storage of air needed to clean the filter. Compressed air is released from the tank in a fraction of a second while passing through the ROMER JET ™ system which expands the filter at high velocity and escapes through the micro holes in the filter with the powder then falling to the floor booth.

The ROMER JET ™ system is patented and ensures the cleaning of the whole filter from top to bottom, this provides a unique cleaning effect, unattainable in the past using simple jet venturi's for example.

Without Powder Recovery

The powder falls to the floor of the unit which can then be disposed of as required. Particularly suited to operators using multiple colour spraying where the powders would not be reusable.

Filter Elements

The thickness of the material that the filters are made from is 260g/m². Polyester filters, not cellulose.

Additional features

The booth is supplied with a compressed air regulator that not only feeds the reverse pulse cleaning, but also the dual quick connection valves for the connection of your powder spraying equipment and blow down gun. Adjacent to the quick connection valves is a blowdown valve to assist in the removal of any moisture that may accumulate within the on-board pressure vessel.

Available Models

Romer - Experienced Powder Coating Manufacturer

The outstanding feature of Romer ovens is the quality of manufacturing. Everyone who stands in front of a Romer, from buyers to calibration engineers, have commented how well constructed they are.

Romer have been manufacturing ovens and powder coating machines from their base in central Poland for over 25 years and export to 40 countries worldwide. Their 8,000m² facility employs over 150 staff and has passed Riley Surface World's inspection and auditing requirements.

Riley Surface World and Romer have secured a partnership to service the UK market with large (over 1m²) ovens up to 225°C and powder coating equipment.

Print / Download Romer KPO 3N Powder Coating Booth Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
