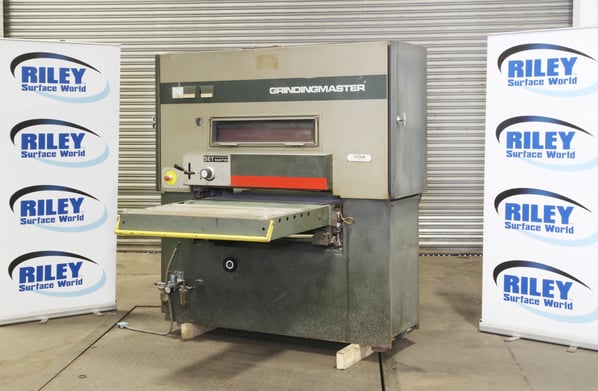

Grindingmaster MCSB-900 Wide Belt Sander

Stock No
PB229
Manufacturer
Grindingmaster
Model
MCSB-900
Year of Manufacture
1997
Serial
XB497-13
R.P.M.
1500
Other Info
Heavy Duty Through Feed Belt Grinder
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1400
External Dimensions (WxDxH mm) [?]
1770 x 1200 x 1870

Description

This pre owned Ellesco Grindingmaster is a premier industrial metal working multi finishing machine. The MCSB 900 is a 900mm wide belt dry working Grindingmaster that is equipped with a powerful motor allowing it to process the toughest and heaviest jobs around.


Typical Applications

  • Stock removal of multiple individual parts and sheet materials.
  • Sizing and finishing of parts and sheet materials.
  • Deburring punched, nibbled, sheared or laser-cut sheet metal parts.
  • Calibrating or keying carbon, rubber, wood or other soft materials.
  • Grain finishing of any material.

Standard features

  • Centralised operator control panel.
  • Full 900mm working width.
  • Wide belt head with fine adjustments of contact roll, 150mm overall clearance.
  • Conveyor bed on 4 heavy duty precision spindles.
  • 4 x ridged, precision made, rubber coated, workpiece hold down rolls.
  • Motorised, single point thickness setting.
  • Conveyor reverse for set-up.
  • Variable speed table motor.
  • Fixed/floating conveyor table.
  • Thickness readout scale.
  • Belt oscillation.
  • Front edge safety bump E stop.
  • Pneumatic tensioning.
  • Air actuated braking.
  • Load amp meter.
  • 415 Volts, 50 Hz, 3 phase.

Available to purchase separately from our dust control section, you will be able to find a suitable dust control plant to match your particular process application whether it be wet or dry.

Known Faults declared by previous service please see attached for details.

  • Flatbed needs adjusting to set levelling.
  • Oscillator is faulty, new oscillator valve required (£300).
  • Would benefit from new drive belts.

pdf icon Print / Download Grindingmaster MCSB-900 Wide Belt Sander Datasheet

Additional files

Service Report January 2021

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
