Machines & equipment for sale

Vixen Surface Treatments FL200 Front Loading Spray Wash

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
14 July 2022 15:00 GMT while stocks last
Part of a Direct Site Clearance
Vixen FL200 Front Loading Spray Wash
Condition
From a working environment, Seen working by RSW, Good Condition, Current Model
Location
Cheltenham, Gloucestershire, UK
Buy Now Add to Quote Book Appointment
Stock No
MBF500
Manufacturer
Vixen Surface Treatments
Model
FL200
Year of Manufacture
2007
Serial
2072
Condition
From a working environment, Seen working by RSW, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
2200 x 2400 x 1400
Process Stages
3
Other Info
Basket Ø 2000 mm 1000kg load capacity
Location
Cheltenham, Gloucestershire, UK
External Dimensions (WxDxH mm) [?]
3300 x 2700 x 2700

Description

Vixen's Jetwash FL200 Front Loading Machine

The phosphate machine is front loading with a 2m diameter basket. The basket is static and a the wash boom rotates around this during the clean and phosphate stages.

This range of phosphating machines were developed so that customers incur low running costs and eradicate any chlorinated solvent-related health and safety issues, with the added bonus of better paint adhesion.

This Vixen phosphating machines operate in a three-stage cycle: hot washing with a phosphate solution, hot rinsing and then hot passivation solution.

Stage 1. Electrically heated rotating boom spray wash with top spinning "U" shaped and "T" bar boom beneath giving a 360° degree high pressure spray wash pattern.

Stage 2. Electrically heated rotating boom spray rinse with top spinning "U" shaped and "T" bar boom beneath giving a 360° degree high pressure spray wash pattern.

Stage 3. Electrically heated static spray hot passivation solution with top and bottom spidered booms.

Scope of work

Vixen's Jetwash FL200 phosphating machine consists of a 3 stage cycle; hot washing with a phosphate solution, hot rinse and hot passivation seal solution to provide better paint and coatings adhesive properties to manufactured components.

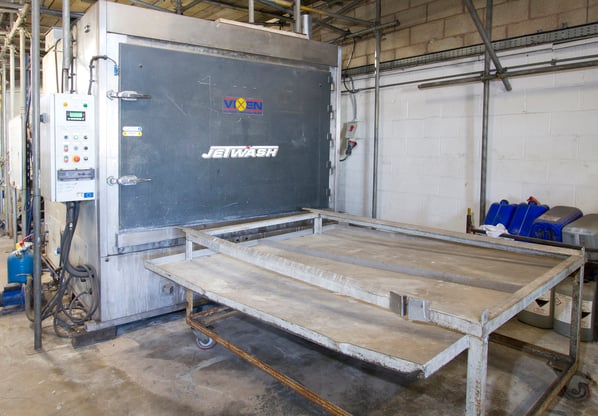

The Jetwash FL200 is a front loading wash and coatings machine with uprising guillotine door which is operated by a pneumatic cylinder and two handed safety control unit, preventing any entrapment risks to the operator.

The design of the machine allows easy loading of heavy components. The machine is supplied with a front loading cart allowing product to be loaded by either fork lift or overhead crane.

Process controls can be set via a digital timer and temperature controls through an LCD display linked to a PCB touch sensitive keypad.

Although primarily designed as a phosphate coating machine the 3 stage wash could readily be used for other types of coatings and surface finishes such as chromates or as a simply hot wash and secondary final rinse (de ionised water for a stain free finish).

Advantages

• Eradication of health and safety issues associated with chlorinated solvents.
• Reduction/elimination of etch prime processes.
• Excellent paint adhesion (salt spray tests indicate 260 hours).
• Fast and flexible processing of metals.
• Low running costs.
• Ease of handling larger components.
• Full technical back up regarding phosphate solution.
• Touch screen controls for easy operation.
• 500 litres per minute cleaning capacity.

pdf icon Print / Download Vixen Surface Treatments FL200 Front Loading Spray Wash Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
