Machines & equipment for sale

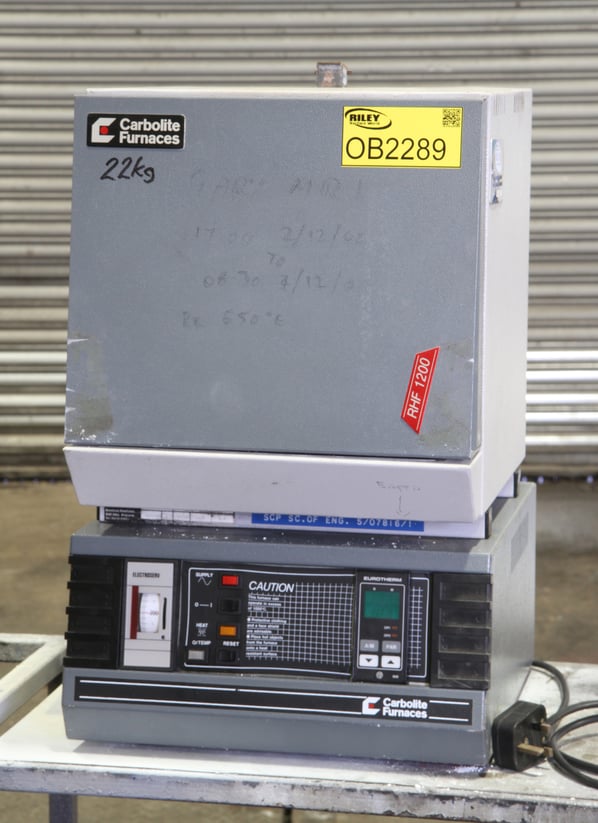

Carbolite Bench Top Laboratory / Tool Room Furnace

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Refurbished by RSW, Good Condition
Buy Now Add to Quote Contact Us
Stock No
OB2289
Manufacturer
Carbolite
Model
RHF 12/3
Serial
8/90/1268
Condition
Refurbished by RSW, Good Condition
Internal Size (WxDxH mm) [?]
150 x 170 x 130
Max Temp
1200°C
Other Info
Vertical Uprising Door
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
22
External Dimensions (WxDxH mm) [?]
370 x 410 x 595

Description

Carbolite 1,200°C bench top furnace with uprising door

Specification

  • 2.1kW
  • 8.4 Amps
  • Single phase 240 Volts
  • Uprising door
  • Eurotherm 808 Controller
  • On/Off switch
  • Chamber size 150mm x 170mm x 130mm
  • External size 370mm x 410mm x 595mm

General notes for operation

  • Heating element life is shortened by overheating.
  • Do not leave the product at high temperature when it is not required.
  • When heating large objects, in particular poor conductors, avoid shielding the thermocouple from the heating elements. The thermocouple is intended to sense the temperature near the heating elements, however, if a large object is placed in the chamber it may record the average temperature of the object and the elements, this can lead to overheating of the elements. Allow large objects to gain heat at a lower temperature and then reset the controller to a temperature close to the desired maximum, or heat using a slowly controlled ramp rate. For more information refer to the controller instructions.
  • When heating materials that produce smoke or fumes, the chimney must be correctly fitted and unobstructed. If not, soot will accumulate in the chamber and could possibly cause an electrical breakdown of the heating element.
  • If the furnace is used to heat materials that emit smoke or fumes, regularly heat it up to maximum temperature for one hour with the chamber empty to burn away the soot.

pdf icon Print / Download Carbolite Bench Top Laboratory / Tool Room Furnace Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
