Machines & equipment for sale

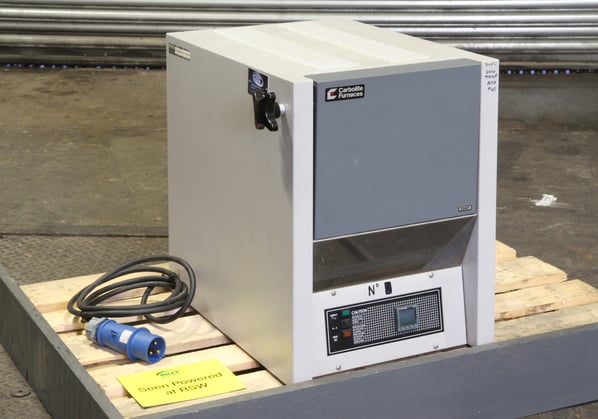

Carbolite 1000°C Bench Top Furnace with Uprising Door

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Current Model, Seen powered at RSW
Stock No
OB2287
Manufacturer
Carbolite
Model
OAF 10/1
Serial
2/91/300
Condition
Good Condition, Current Model, Seen powered at RSW
Internal Size (WxDxH mm) [?]
170 x 460 x 90
Max Temp
1000°C
Other Info
Vertical Uprising Door
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
58
External Dimensions (WxDxH mm) [?]
510 x 690 x 630

Description

Specification

  • 3.9 kW.
  • 16.5 Amps.
  • 240 Volts.
  • Uprising door.
  • Eurotherm 2116 controller.
  • On/Off Switch.
  • Chamber size 170mm x 460mm x 90mm.
  • External size 510mm x 690mm x 630mm.

General notes for operation

  • Heating element life is shortened by overheating.
  • Do not leave the product at high temperature when it is not required.
  • When heating large objects, in particular poor conductors, avoid shielding the thermocouple from the heating elements. The thermocouple is intended to sense the temperature near the heating elements, however, if a large object is placed in the chamber it may record the average temperature of the object and the elements, this can lead to overheating of the elements. Allow large objects to gain heat at a lower temperature and then reset the controller to a temperature close to the desired maximum, or heat using a slowly controlled ramp rate. For more information refer to the controller instructions.
  • When heating materials that produce smoke or fumes, the chimney must be correctly fitted and unobstructed. If not, soot will accumulate in the chamber and could possibly cause an electrical breakdown of the heating element.
  • If the furnace is used to heat materials that emit smoke or fumes, regularly heat it up to maximum temperature for one hour with the chamber empty to burn away the soot.







pdf icon Print / Download Carbolite 1000°C Bench Top Furnace with Uprising Door Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
