Donaldson Filtration Solutions Ultrafilter Ultracool 0180SP

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Stock No
AB101
Manufacturer
Donaldson Filtration Solutions
Model
Ultracool 0180SP
Serial
46379
Condition
From a working environment, Good Condition
Ave. cooling capacity
22kW with a CWLT 10°C
Ave. Water Flow Rate
62.6L/Min Nominal flow
Other Info
Nominal pump pressure 3.2Bar
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
380
External Dimensions (WxDxH mm) [?]
960 X 1310 X 1830

Description

Process circulation chiller for industrial applications which is suitable for operation at ambient temperatures from 5°C to 50°C. User-friendly menu guidance with simple 2-key operation and a 1-line LED display for display of actual or set temperatures and electronic 2-point temperature control with hysteresis.

Features

  • Industrial block pump with high pressure and high flow rate.
  • Evaporator and pump in stainless steel construction
  • Start-up systems for low ambient temperatures
  • Suitable for outside siting with its  IP54 protection level.
  • Antifreeze protection thermostat.
  • Integrated motor fan speed regulation.
  • Insulated water tank made of polyethylene.
  • Operation with refrigerant R 134a.

User friendly installation and maintenance and reduction of footprint to save installation space
Protection of the refrigeration circuit against pressures that drift too high or too low
Keeps water temperature constant even under varying load conditions

(1) The Ultracool units can work with cold water temperatures lower than 7ºC (45ºF). To do so, add ethylene glycol to the water and contact an authorized technical service to adjust the chiller.

(2) In order to work at temperatures lower than 0ºC (32ºF), add ethylene glycol to the water and contact an authorized technical service to adjust the chiller.

The following table shows the ethylene glycol concentration and the antifreeze adjustment required:

  • Glycol concentration and antifreeze adjustment in an ambient  0 and above
  • Water Set Point 7ºC or more 0%
  • Water Set Point 5 - 7ºC or more 15%
  • Water Set Point -5 - 5ºC or more 00%

Glycol concentration and antifreeze adjustment in an ambient  -15 and above

  • Water Set Point 7ºC or more 30%
  • Water Set Point 5 - 7ºC or more 30%
  • Water Set Point -5 - 5ºC or more 30%

Technical Data LAUDA Ultracool UC-0180 SP

  • Working temperature min. °C -5
  • Working temperature max. °C 25
  • Ambient temperature min. °C -15
  • Ambient temperature max. °C 50
  • Temperature stability ±K 2
  • Volume water reservoir L 100

Cooling ranges at varying ambient temperatures

  • Cooling output at 25°C water outlet temperature kW 32.9
  • Cooling output at 20°C water outlet temperature kW 30.2
  • Cooling output at 15°C water outlet temperature kW 26.0
  • Cooling output at 10°C water outlet temperature kW 22.0
  • Cooling output at 5°C water outlet temperature kW 18.0
  • Cooling output at 0°C water outlet temperature kW 14.5
  • Cooling output at -5°C water outlet temperature kW 11.5

Application external

  • Noise level dB(A) 56
  • Power consumption kW 9.3
  • Pump pressure max. bar 4.20
  • Pump flow max. (pressure) L/min 130
  • Pump connection thread HT DN25

Suitable for process plant, plastic injection moulding, polythene recycling, pet bottle recycling and air conditioning.

Built in pump and pressure vessel (hydronic module) A truly self contained unit, nothing more to buy or set up apart from the power supply and water pipes in and out.



pdf icon Print / Download Donaldson Filtration Solutions Ultrafilter Ultracool 0180SP Datasheet

Additional files

Technical Data Sheet

Brochure & Spec

Brochure

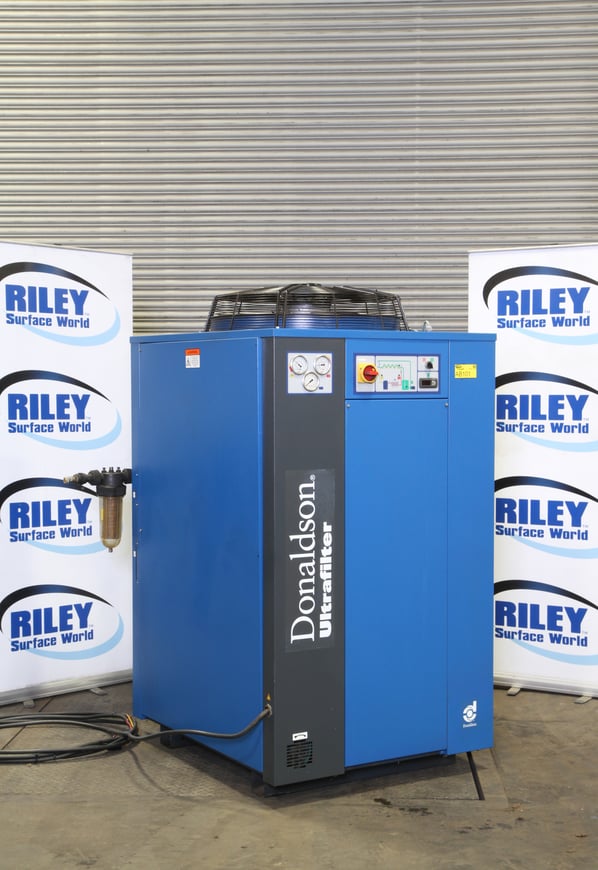

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
