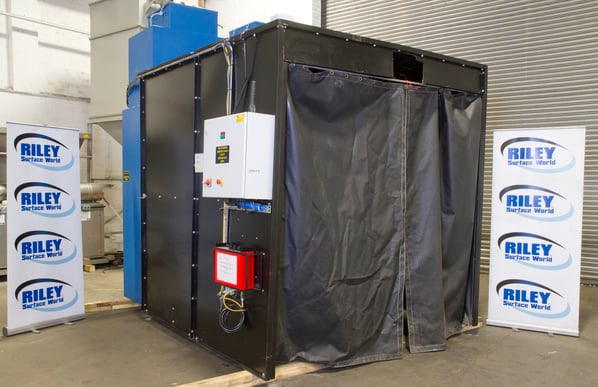

Donaldson Torit (DCE) ECB-2 Environmental Control Dust Collection Booth

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
GA847J
Manufacturer
Donaldson Torit (DCE)
Model
ECB-2
Year of Manufacture
2009
Serial
60100300
Condition
From a working environment, Excellent Condition, Current Model
Approx Duty CFM / M³/Hr
4000 CFM // 8000M3
Filter Area ft² / m²
12 Cartridge 124M2
Other Info
Internal Booth Size 2310 x 2375 x 2280h
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1120
External Dimensions (WxDxH mm) [?]
2700 x 3550 x 3470

Description

The Donaldson Torit® DCE Environmental Control Booth, ECB Work Station, is ideal for finishing works on large and irregularly shaped parts. This self-contained working environment is specially designed to remove fine airborne dust from multiple sources without interfering with workers’ movement or visibility to ensure efficient dust control.

Set up for use as an NDT fluorescent penetrant indicator (powder developer booth). The operating procedure can be seen in the images.

Features

  • Stand-alone unit for easy moving at the plant.
  • High filtration efficiency with Ultra-Web® cartridge filters (optional).
  • Freedom of movement and improved visibility.
  • Flexibility to increase capacity.
  • Requires no ductwork.
  • Safely recirculates cleaned air for reduced energy costs.
  • Reverse pulse jet cleaning controlled via Integrated pulse controller.
  • Electrostatic generator from the original process.
  • Blow off gun and pressure regulator from the original process.
  • Internal lighting.

Technical

  • Model ECB 2 environmental control booth
  • Internal booth size: 2310mm x 2375mm x 2280mm
  • 2 off, 4 kW // 5.5Hp fan sets
  • Number of fan sets: 2
  • Number of cartridges: 12
  • Filtration area: 124m² or 252m² (depending on cartridge type)
  • Open inlet louvres fitted (Option to fit additional spark trap)
  • Net weight: 1120kg
  • Twin Hepa filters
  • Curtains fitted to the front of the booth

What is Reverse Pulse Jet Cleaning?

Filters in Powder Coating Plant collect powder particles - that's their job. This powder builds up and needs to be cleaned. Without cleaning there will be an impact on the working environment and the efficiency of the powder coating operation. It also reduces the volume of powder that can be recycled.

Reverse Pulse Jet cleaning of filters uses a jet of air to clean dust from the filters. The filters are cleaned by a series of rapid, high-pressure air jets which send a blast or shock of air through the reverse side of the filters. In effect this shakes the collected powder from the filters. The rapid reverse pulse of air allows for continuous operation with the fan running and has high collection efficiencies. A control unit sets the variables such as time duration between pulses, length of pulse and pressure to suit the powder and load the powder coating equipment is under.

Reverse Pulse Jet technology is also used on dust collectors especially in manufacturing environments where large volumes of solids are processed, such as mineral production, food processing and metal fabrication industries.

Importance of Dust Extractors

Dust in the workplace can affect product quality and employee´s health. Having a dust-free environment is essential to the health and safety of the workforce. Not only does it affect the health of employees but the dust covers the equipment affecting production processes and quality of the products.

Capturing the dust at the source prevents it from spreading, done by using a dust extractor system to facilitate the important housekeeping to avoid it from accumulating.

pdf icon Print / Download Donaldson Torit (DCE) ECB-2 Environmental Control Dust Collection Booth Datasheet

Additional files

Data Sheet

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
