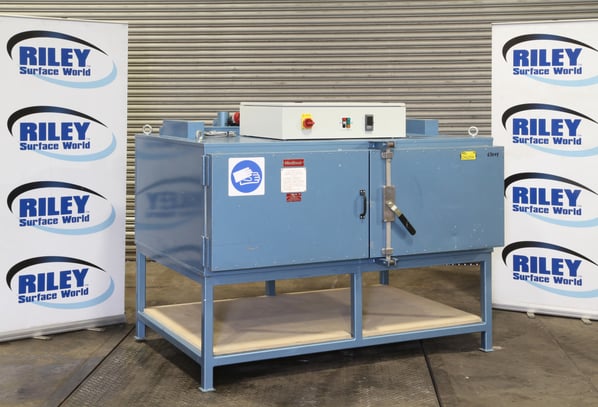

Hedinair Hotline 750 Litre Industrial Air Circulated Oven

Stock No
OA2264
Manufacturer
Hedinair
Model
Hotline 750Litres / 250°C
Year of Manufacture
2013
Serial
19248
Condition
From a working environment, Excellent Condition, Current Model
Internal Size (WxDxH mm) [?]
1500 x 1000 x 500
Max Temp
250°C
Other Info
12kW rating
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
650
External Dimensions (WxDxH mm) [?]
1860 x 1600 x 1520

Description

A second hand Hedinair Hotline Oven - The oven is suitable for all types of production work. Features include twin air circulation rear mounted fans, twin air vents and has wide double opening doors for long or wide product treatments.

Features

  • Control panel is roof mounted for space saving, with simple red/green on/off buttons, Eurotherm 3508 temp controller.
  • Maximum Temp - 250°C.
  • Twin rear mounted fans for even hot air distribution within the heating chamber during processing.
  • Double robustly constructed locking doors.
  • Removable single internal shelf with mesh gridding.
  • Two Vents to atmosphere with variable control damper.
  • Stand mounted with lower shelf.

Ideally suited to low temperature thermal treatments such as stress relieving, de-embrittling, tempering.
Alternative applications being the pre-heating of ferrous/non ferrous/plastic/wood/glass substrates or curing/stoving, it is also suitable coatings.

This would make an excellent addition for those processing small batches / sample runs in a production or laboratory environment.

  • General Assembly – A0 – 51766
  • Wiring Diagram – WO 444
  • Rating – 12kW Heat
  • Electrical Supplies – 32A 38{)/415 Volts, 3 Phase, 4 Wire, 50 Hz
  • Heating Elements - 12 x 225113-1041 rated at 1000W each
  • Twin Fan Motors – 0.37kw 1380 rpm
  • Operating Range - 50 °c - 250°c (max)
  • Working Dims - W = 1500mm D = 1000mm H = 500mm
  • Overall Dims - W = 1860mm D = 1600mm H = 1520mm
  • Weight –  650kg

pdf icon Print / Download Hedinair Hotline 750 Litre Industrial Air Circulated Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
