Machines & equipment for sale

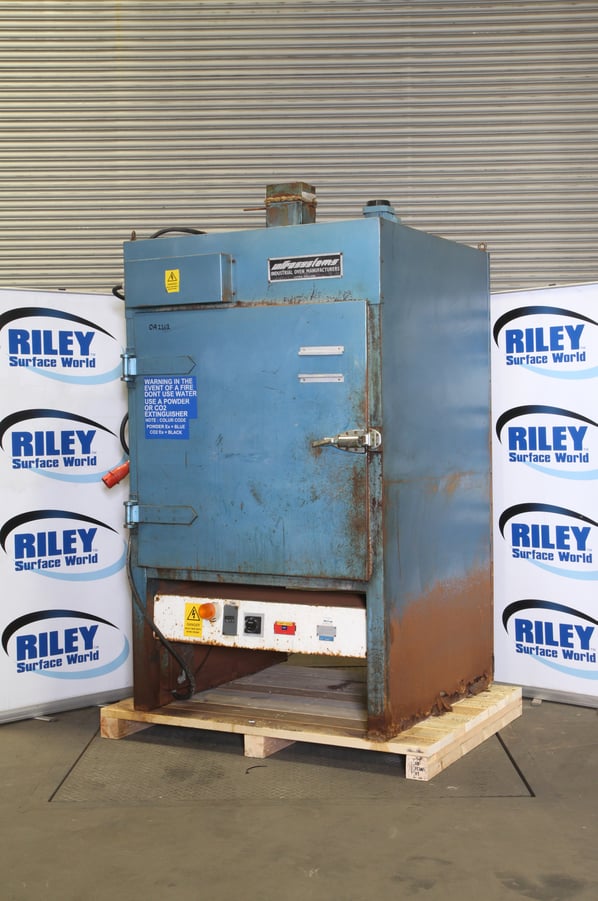

Infrasystems Industrial Ovens General Purpose Heavy Duty Air Circulated Electric Box Oven

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Seen working by RSW, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
OA2262
Manufacturer
Infrasystems Industrial Ovens
Model
1000 Litre Box Oven
Condition
From a working environment, Seen working by RSW, Seen powered at RSW
Internal Size (WxDxH mm) [?]
965 x 1090 x 1075
Max Temp
250°C
Other Info
24 Hour 7 Day Timer
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1310 x 1360 x 2360
Delivery
Your delivery options

Description

Electric Box Oven by Infrasystems Industrial Ovens Luton suitable for almost any application from simple drying processes to exacting metal treatments.

  • Fitted with 24 hour, 7 day process timer.
  • Digital PID temperature controller, CAL 3200.
  • Internal calibration accuracy plus/minus 5°C.
  • Single door opening.
  • 6 shelf provisions.
  • 3ph supply, 5 pin plug fitted.
  • 32 amps
  • Air circulated.
  • Oven chamber height set to enabling easy loading.

Typical applications for this batch type box oven are:

  • De-embrittlement of engineering surface coating and plating finishes to name but a few.
  • Curing paints, varnishes and inks.
  • Curing resins, rubbers and composite.
  • General engineering / thermal processing.
  • Basic research / research institute.
  • Electronics / semiconductor industry.
  • Plastics / composites industry.
  • Human / veterinary medicines.

General features of this oven include:

  • Temperature range of 250°C.
  • Double boxed mineral slab insulated construction.
  • Horizontal air re-circulation.
  • Natural draft exhaust flue manifold.

pdf icon Print / Download Infrasystems Industrial Ovens General Purpose Heavy Duty Air Circulated Electric Box Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
