Machines & equipment for sale

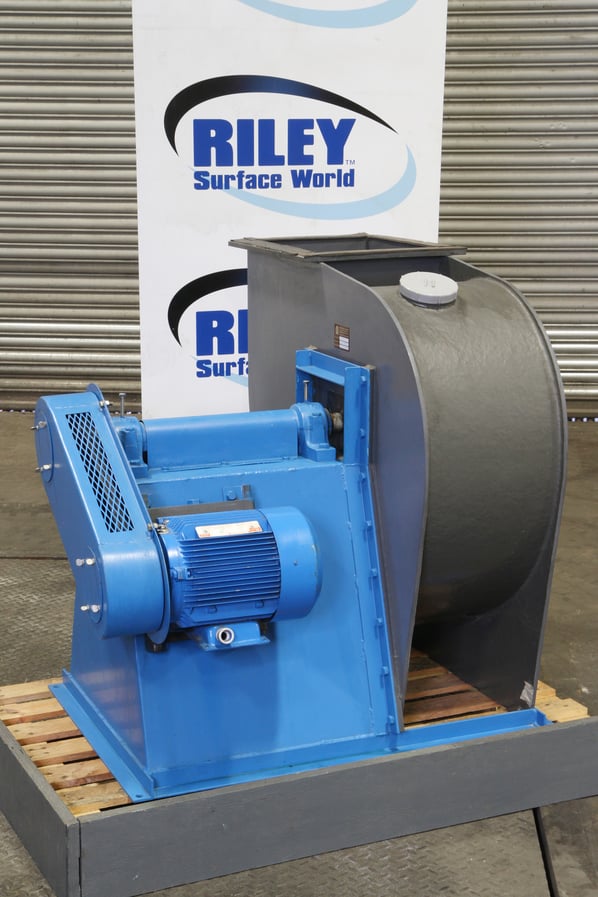

Modus PVC Chemical Resistant Centrifugal Fan

Stock No
FA130
Manufacturer
Modus
Model
Centrifugal Fan
Year of Manufacture
Ref 2021
Serial
C6607/ 1
Condition
Refurbished by RSW, Current Model
Approx Duty CFM / M³/Hr
5090m3/Hr
Filter Area ft² / m²
Air Movement
Other Info
Forward Curved PVC Impellor
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
155
External Dimensions (WxDxH mm) [?]
1000 x 1000 x 1000

Description

4kW centrifugal fume exhaust fan manufactured by Modus Air.

Specifications

  • 5090 cmtr/hr
  • Driven by a 5.5 hp / 4 kW motor at 14400 rpm
  • Footprint 1000 x 1000 mm
  • Overall Height 1000 mm
  • Scroll width 300 mm
  • Inlet 450 mm diameter
  • outlet 370 x 300 mm
  • PVC Impellor
  • V belt driven

Handing - LG 0 - British standard = R90

pdf icon Print / Download Modus PVC Chemical Resistant Centrifugal Fan Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
