Ultrawave Ltd Neon 90 Modular Ultrasonic Washing Rinsing and Drying System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Ex demonstration, Current Model
Stock No
DA1411J
Manufacturer
Ultrawave Ltd
Model
X Neon 90
Year of Manufacture
2015/16
Serial
052978/053745/053922/054624
Condition
From a working environment, Ex demonstration, Current Model
Work Envelope (WxDxH mm) [?]
600 x 500 x 300
Process Stages
4 Stage system
Other Info
3 x 90L 1000W Ultrasonic wash/Rinse tank
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
170+172+130+166+52+8 = 698
External Dimensions (WxDxH mm) [?]
1 off 740x830x930 3 off 740x810x930

Description

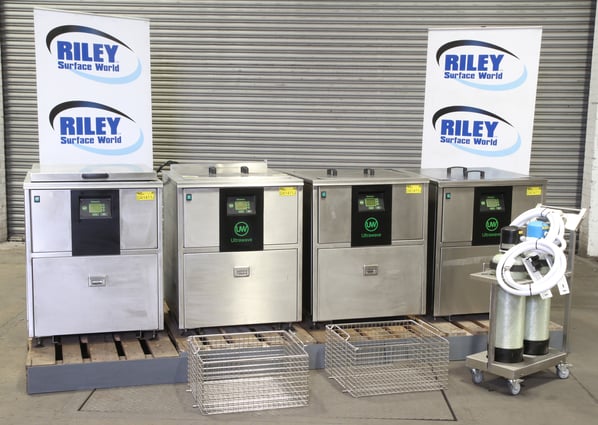

4 Tank Cleaning System, 3 Ultrasonic heated washing or rinsing plus a fourth tank for drying. (Can be configured to suit your needs)

The Ultrawave company

'With 30 years of experience in manufacturing precision ultrasonic cleaning systems, Ultrawave is one of the largest manufacturers of ultrasonic cleaners in the UK. All of their ultrasonic cleaners are designed and manufactured by their team of designers, engineers and technicians at their  headquarters in Cardiff, South Wales. By ensuring top quality they have complete control of all processes and have the flexibility to meet individual customer requirements and provide cleaning solutions to many different markets and applications.

90 Litre Ultrasonic Cleaning System

The Neon Series enhances your ultrasonic cleaning activities, delivering outstanding performance from one small footprint. The integral recirculation system ensures minimal fluid contamination even after cleaning, reducing running costs and improving component cleanliness.

Fully Integrated System

The Neon Series incorporates an overflowweir, pump and filtration in one small footprint. Its clever modular design allows easy retrofitting of additional wash, rinse and drying stages as required. All wetted parts are 316 stainless steel, maximising chemical compatibility and system longevity.

Environmentally Friendly,

Cost Saving Running costs and waste are reduced by the filtered and recirculated cleaning fluid, using less water and detergent than standard ultrasonic cleaners.

Features

  • Tank 1 Ultrasonic cleaning or rinsing with Hinged Lid. Ultrawave’s new Neon 90 enhances your ultrasonic cleaning activities with Frequency Leap Technology, delivering outstanding performance with cost saving benefits. All wetted parts of the tank are 316 stainless steel, maximising chemical compatibility and system longevity.
  • 1000W, 32 to 38kHz ultrasonics.
  • 2000W heating power.
  • Digital controller, time, temperature and recirculation.
  • Timer control for 0 to 80 minute washing cycles.
  • Integral pump and filters, 970 Watt max flow rate of 80L/Min.
  • Float level switch.
  • Industrial 3 pin 16 amp plug.
  • 316 Stainless Steel construction.
  • Tank 2 and Tank 3 Ultrasonic cleaning or rinsing with Lid. Ultrawave’s new Neon 90 enhances your ultrasonic cleaning activities with Frequency Leap Technology, delivering outstanding performance with cost saving benefits. All wetted parts of the tank are 316 stainless steel, maximising chemical compatibility and system longevity.
  • 1000W, 32 to 38kHz ultrasonics.
  • 2000W heating power.
  • Digital controller, time, temperature and recirculation.
  • Timer control for 0 to 80 minute washing cycles.
  • Integral pump and filters, 970 Watt max flow rate of 80L/Min.
  • Float level switch.
  • Industrial 3 pin 16 amp plug.
  • 316 Stainless Steel construction.
  • Tank 4 hot air drying with Lid.
  • Domestic 3 pin plug.
  • Digital control for time and temperature. (0 to 240 Min's)
  • Heating power 2000W with 28W fan assist.
  • Working capacity 90 Litres.
  • Ambient to 120°C.

 Includes

  • 6 stainless steel baskets size 365 x 210 x 130 made from 25mm square mesh.
  • Two smaller baskets.260 x 200 x 130 made from 8mm square stainless steel mesh.
  • 3 stainless steel trays. (470 x 355 x 40mm deep)
  • Digital Scales.
  • Di-Ionised water purification system

Industries

  • Aerospace.
  • Automotive.
  • Science and pharmaceutical.
  • Beauty and healthcare.
  • Dental.
  • Food and beverage.
  • Defense.

The OEM is available for support, servicing and spares if required.



pdf icon Print / Download Ultrawave Ltd Neon 90 Modular Ultrasonic Washing Rinsing and Drying System Datasheet

Additional files

System Specification

Manual

Brochure

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
