8 Stage Electroplating Plating Line

Direct From Site Clearance

Offers invited over [?]
£ Login or Register for price
Clearance ends
20 December 2021 15:00 GMT while stocks last
Part of a Direct Site Clearance
Multi-Stage Plating Line
Condition
From a working environment
Location
Newbury, Berkshire, UK
Stock No
PRO500
Model
8 Stage Electroplating Plating Line
Year of Manufacture
2008 (Ref)
Condition
From a working environment
Work Envelope (WxDxH mm) [?]
760/2400 x 600 x 900
Process Stages
8
Other Info
4 off Rectifiers
Location
Newbury, Berkshire, UK
External Dimensions (WxDxH mm) [?]
13,700 x 1120 x 1020 mm

Description

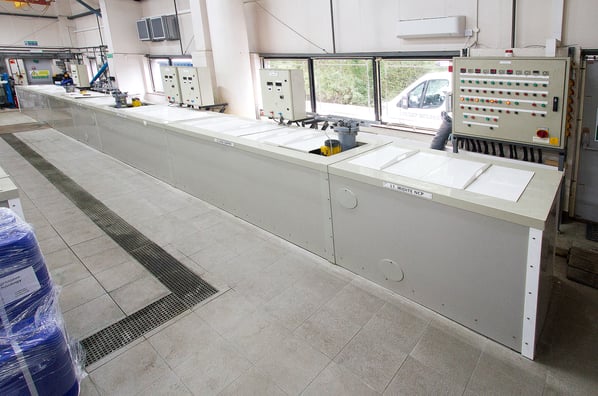

Electrochemical Supplies Ltd. modern high quality multi station process line suitable for a wide range of plating and immersion surface treatments - Fully refurbished in 2008

Line consists of 8 Tanks, 4 Rectifiers, control panel and extraction

Tanks are of Polypropylene construction. 9mm thick polypropylene and supplied with the following:-

  • 43mm Top flange around circumference of Tanks
  • Polypropylene reinforcing belly bands
  • 1" Ø drain outlet
  • Rear lip extraction duct with output spigot and extraction slots
  • Polypropylene Anode bar saddles
  • 100mm overlapping rim at front and rear of the plant
  • Tank apertures each have 30mm internal downturn for each lid location
  • Tank apertures each have polypropylene Lid with lifting handle and location strip, to ensure rigidity
  • Line is cladded at each end. Cladding comprises of sections of 6mm thick polypropylene, each mounted directly onto metal frames (sides & bottom) secured with Stainless Steel fasteners
  • Each panel has valve access portholes with pendulum porthole covers allowing easy access to the valves, along with the facility to remove each panel to gain access to the pipework or Tank base.

Tank detail and dimensions:-

Tank

Description

Length mm

Width mm

Height mm

Volume (Litres)

1

Iridite NCP

1250

600

900

530

2

Acid Copper

2400

600

900

1200

3

Acid Copper

2400

600

900

1200

4

Rinsing

1200

600

900

530

5

Acid Copper

1300

600

900

575

6

Bright Silver

1300

600

900

575

7

Alocrom

760

600

900

360

8

Electroless Nickel

760

600

900

360

Rectifiers
2 off 100 amp 15 volt Rectifiers
2 off 100 amp 10 volt Rectifiers

Filters
3 off Serfilco Filters with motor - Model no: CS6EO3DMO.5

Serfilco Filtration Systems are compact, corrosion resistant and extremely simple to operate. A choice of construction materials allows their use with most liquids, including strong chemicals at elevated temperatures.

Serfilco products have gained global approval for recirculation purification of most electroplating and chemical process solutions. They have proven to be a reliable workhorse for over half a century.

With numerous systems in service around the globe, you can be confident a Serfilco Filtration System will improve the clarity of your process solutions, increase production quality, and reduce process cost.

Choose a basic filtration system with your choice of media, pump and filter chamber. Then select from a wide range of optional equipment to customize your system. Call us and we’ll help you select the perfect system for your application.

Serfilco filters can accommodate a variety of filter media including cartridges, disks, bags, permanent media or carbon and GAC. The rugged construction features a low pressure drop for long intervals of continuous high flow and long service life.

Therm-O-Level Controller
Controls temperature of liquids by switching heaters(s) on and off according  to the temperature required. In addition included in the device is a safety low level cut off which will switch off the heater whatever the setting should the liquid fall below the probe.

The Therm-O-Level consists of two parts:-
1) The unit itself which in standard form will control 3kw of heater(s) this is enclosed in a robust case of PVC which is sealed to IP55 standard with three cable glands.
Situated on the front of the unit is:-

  • Mains on/off switch for heater & Unit
  • Display which normally indicates actual temperature
  • Set button which when pressed will make display indicate set temperature
  • Set control which is used in conjunction with set button to set desired temperature

2) Non corrosive 10mm Ø probe. 300mm long with a 2 meter lead, this probe detects the temperature in the liquid relaying the information back to the unit.

 * Footprint of plating line (Tanks) : 13,700 x 1120 x 1020 mm (L x W x H) *

 * Overall height of the plant up to ceiling (Extraction Chimney): 2100 mm *
