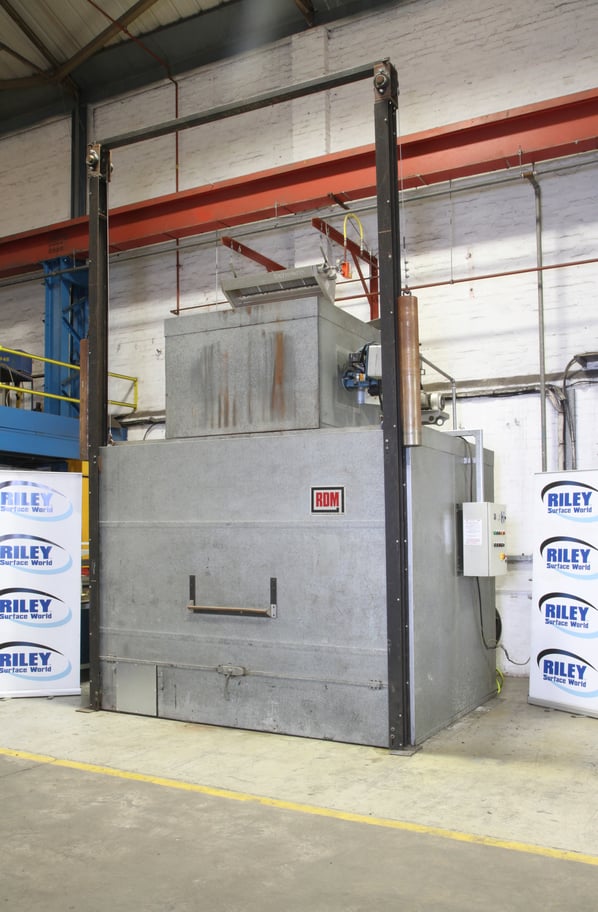

RDM Engineering 225°C Gas Fired Oven

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
15 December 2021 15:00 GMT while stocks last
Part of a Direct Site Clearance
Large Composite and Curing Ovens
Condition
From a working environment, Good Condition
Location
Leicestershire, UK
Stock No
OA2250
Manufacturer
RDM Engineering
Model
Forced Air Recirculation Industrial Oven
Year of Manufacture
2000
Condition
From a working environment, Good Condition
Internal Size (WxDxH mm) [?]
1800 x 2600 x 2000
Max Temp
225°c
Location
Leicestershire, UK
External Dimensions (WxDxH mm) [?]
2400 x 3050 x 5000 (Inc. frame)

Description

RDM ‘MODULAIR’ Ovens are of the hot air recirculation type. With this design, the Oven interior is heated by a fan assisted convection process.

The heated air is constantly recycled around the Oven’s interior to maintain superb temperature consistency. Fuel consumption is considerably lower than would be expected with the other types of oven (such as Radiant of Infra Red). This is because in normal use, the oven operates at considerably reduced power to simply maintain its internal temperature.

RDM Oven systems offer simple and very accurate digital temperature control. A huge choice of more sophisticated control options is also available. The ovens are exceptionally fuel efficient and responsive due largely to our utilisation of the latest burner or heater technology as well as the oven‘s fully integrated, insulated construction.

A good distribution of heat is vital for successful process Oven design. Indeed, RDM Ovens are often specified in the most critical aerospace applications requiring superb temperature profile stability. To ensure good performance, all RDM Ovens incorporate medium pressure multi vane centrifugal fans complete with scroll casings to provide a very positive and well controlled air movement. This is usually at least four complete air recycles per minute. Large duct work ensures that the high air volume will not disturb the product.

Features:

  • Gas Fired
  • Vertical Uprising Door (removable)
  • Includes explosion relief panel in roof.
  • Air circulation control dampers
  • Floor allows easy access for trolleys etc.

Applications:

RDM Ovens are intended for all Industrial Drying, Stoving, Curing and Heating applications from 30˚ to 450˚ Centigrade. These include:

  •  Paint Stoving
  •  Epoxy/Polyester Powder Curing
  •  Lacquer Drying
  •  Hydrosetting
  •  Battery processing
  •  Moisture removal
  •  Plastic Curing
  •  Rubber softening
  •  Metal annealing
  •  Spring stress relieving



pdf icon Print / Download RDM Engineering 225°C Gas Fired Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
