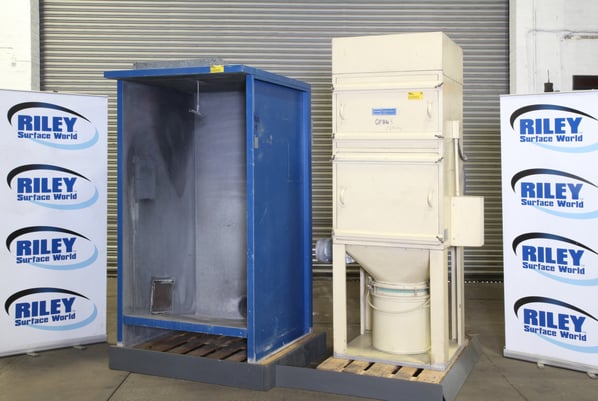

Donaldson Torit (DCE) Powder Coating Booth and UMA 152 Dust Extractor

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Seen working by RSW, Good Condition, Seen powered at RSW
Buy Now Add to Quote Contact Us
Stock No
GA843
Manufacturer
Donaldson Torit (DCE)
Model
UMA152 K3 with ATEX Explosion Panel
Serial
614063
Condition
From a working environment, Seen working by RSW, Good Condition, Seen powered at RSW
Work Envelope (WxDxH mm) [?]
1100 x 1100 x 2000
Process Stages
Manual Booth
Other Info
Suitable 4 containment of nuisance dusts
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
1100 x 1150 x 2020
Delivery
Your delivery options

Description

A 2M³ Spray booth with a Donaldson Torit DCE UMA 152 K3 1.5 kW//2hp Extraction Unit.

A second hand DCE Unimaster UMA 152 K3 dust extraction unit designed to stand alongside a very wide range of dust-generating machinery and processes.

The UMA 152 is a compact, self-contained fabric filter dust control unit complete with a 1.5 kW // 2 hp fan, self-cleaning mechanism, easy-access filter assembly, & a 2ft³ waste container bucket with quick-release sealer gear.

ATEX rated explosion panel is located to the rear of the extractor.

  • Duty CFM / M³ =900//1500
  • Filter area Ft² / M² =150//15
  • Size 1050 x 1280 x 2560
  • Weight = 320Kg

Design features

  • Compact design.
  • Minimises floor space and fits in virtually any plant layout.
  • Versatile to suit a variety of dust collection applications.
  • Quiet & efficient operation.
  • Motors and fan are enclosed in collector housing to minimise noise.
  • Easy maintenance.
  • 2 cuft collection bucket.
  • Silencer box.
  • Quick-release Lever allows for easy removal and maintenance of bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils inserted into filter bags keep bags open to maximize airflow and assist in knocking dust off during the cleaning cycle.
  • Explosion relief panel.
  • Bag-release screws allow for easy removal of bags.

Spray Booth

  • Painted mild steel construction.
  • 1100mm x 1150mm x 2020mm.
  • Roof mounted light.
  • Hanging rail.
  • Tapered back floor panel from 250mm to 0mm.
  • Rear lower extraction duct connection.

What is Reverse Pulse Jet Cleaning?

Filters in Powder Coating Plant collect powder particles - that's their job. This powder builds up and needs to be cleaned. Without cleaning there will be an impact on the working environment and the efficiency of the powder coating operation. It also reduces the volume of powder that can be recycled.

Reverse Pulse Jet cleaning of filters uses a jet of air to clean dust from the filters. The filters are cleaned by a series of rapid, high-pressure air jets which send a blast or shock of air through the reverse side of the filters. In effect this shakes the collected powder from the filters. The rapid reverse pulse of air allows for continuous operation with the fan running and has high collection efficiencies. A control unit sets the variables such as time duration between pulses, length of pulse and pressure to suit the powder and load the powder coating equipment is under.

Reverse Pulse Jet technology is also used on dust collectors especially in manufacturing environments where large volumes of solids are processed, such as mineral production, food processing and metal fabrication industries.

pdf icon Print / Download Donaldson Torit (DCE) Powder Coating Booth and UMA 152 Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
