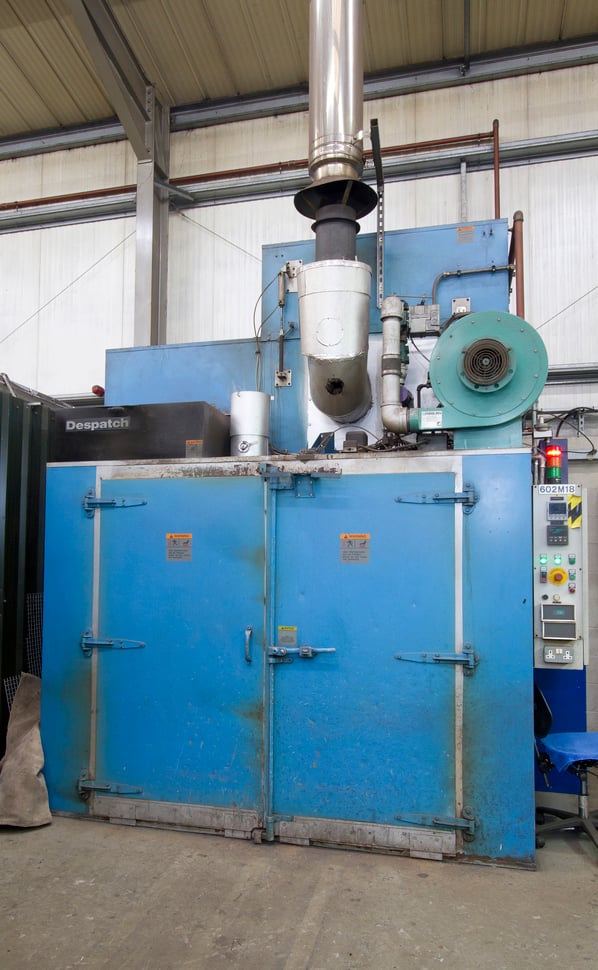

Despatch Industrial Gas Fired Curing Oven

Direct From Site Clearance

Offers invited over [?]
£ Login or Register for price
Decommissioning,
Moving & Loading Contribution [?]
£ 1,150 (+ VAT) will be added to your invoice
Part of a Direct Site Clearance
Large Composite and Curing Ovens
Location
Worksop, Slough, UK
Stock No
OA2248J
Manufacturer
Despatch
Model
Special PWC 3-21
Year of Manufacture
1996
Serial
156885-9
Internal Size (WxDxH mm) [?]
1800 x 1800 x 1750 mm
Max Temp
260°C
Other Info
Explosion relief panel to rear
Location
Worksop, Slough, UK
Weight (kgs)
3000kg
External Dimensions (WxDxH mm) [?]
2950 x 2150 x 3450 mm

Description

The Despatch walk-in, trolley-in ovens can accommodate a variety of specific product and process needs. these units are in particularly good condition and and ready to go.

Typical applications include:-

  • Aging
  • Bonding
  • Curing
  • Dying
  • Baking
  • Heat treating
  • Annealing
  • Stress-relieving


The Walk-In Ovens and Trolley-In Ovens are designed for industrial process versatility and dependability.

Despatch’s design, manufacturing, quality, and innovation ensures industrial ruggedness, excellent process control, and dependable operation. The ovens are ideal for applications involving tight tolerences, multiple profiles and close control.

The Ovens are specifically designed to meet NFPA 86 requirements for applications that include solvents, volatiles or large amounts of moisture removal. These Class A ovens are complete with fitted explosion pressure relief panels, purge timers, and matched exhaust fan.

Horizontal Airflow for Ultimate Temperature Uniformity.

The Ovens use multi vent Horizontal recirculating airflow to ensure uniform temperatures throughout the oven. A high-volume fan circulates air through the aluminised steel walls to create a constant airflow through all sections of the oven.

Controls are easy to use yet have comprehensive features

Eurotherm 3504 programmable controls are easy to use for both simple and complex applications. Single and multiple-temperature applications begin with the push of a button. Multiple temperature operations are controlled by up to eight programs, with eight ramp and soak segments in each program. Eye level controls are easy to read and operate with a second policman controller to monitor the process.

Special feature

Reverse flow controlled cooling.

Built in above the oven is a radiator pack that accepts chilled water to offer a controlled rapid cooling facility to offer shorter process times and controlled temperature profiles.

Supplied Fully Assembled

Each oven will be supplied fully assembled and wired to minimise installation time. Once the oven is in place, simply make the electrical power, flue and gas connections and away you go.

Superior Quality

The Despatch Ovens feature a sturdy, welded, double-wall construction, five inches of glass fiber insulation, and heavy-duty high temperature door gaskets. Aluminised steel interior minimises corrosion problems and provides long life.

Physical Specifications:

Chamber size (width x depth x height) 72 x 72 x 72 in. 183 x 183 x 183 cm
Capacity in cubic feet (Litres) 216 (6116)
Overall size (width x depth x height) 295 x 215 x 345 cm
Approximate net weight 3000kg

Functional Specifications:

Minimum operating temp above ambient 20°C
Maximum Operating Temperature 260°C

Standard Features:

Eurotherm 3504 Programmable control with large LCD display
High-limit alarm
Test access port
Aluminised steel interior
High volume recirculating fan provides fast, uniform heating - saving process time and improves product quality
Insulated floor with trolley tracks
Adjustable louvers
Proportioning indirect radiant tube 300,000 BTU 100kW gas fired heater
CE compliant

Supply specifications

300,000 btu burner (100kW)
Natural gas supply @1-2psi pressure
Electrical supply 415/3ph/50hz @ full load 16.8 Amps

pdf icon Print / Download Despatch Industrial Gas Fired Curing Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
