Machines & equipment for sale

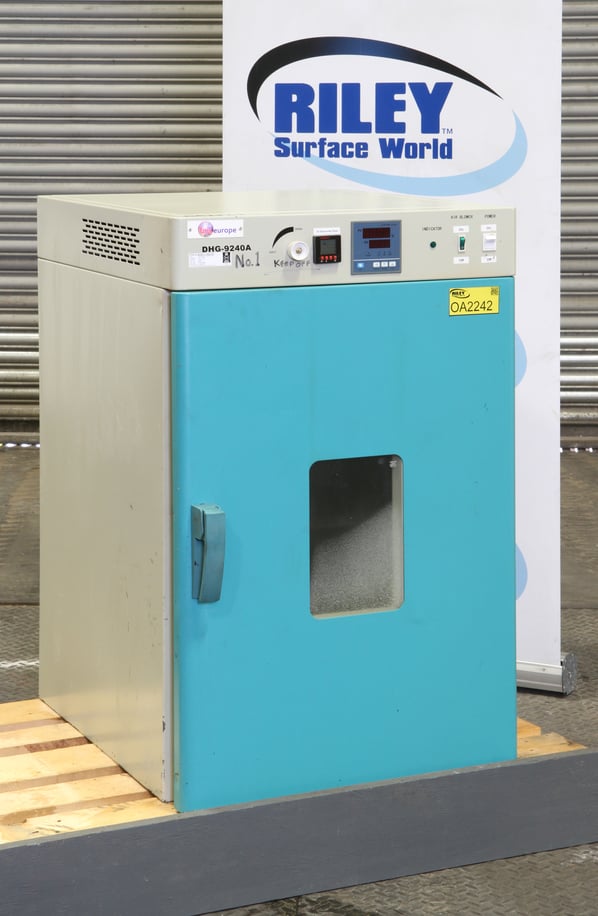

TMS 240 Litre Europe Lab Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition, Current Model
Stock No
OA2242
Manufacturer
TMS
Model
DHG 9240 A
Year of Manufacture
2017
Serial
DHG 171201
Condition
Seen working by RSW, Good Condition, Current Model
Internal Size (WxDxH mm) [?]
460 x 595 x 750
Max Temp
200°C
Other Info
Stainless Steel Lined
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
116
External Dimensions (WxDxH mm) [?]
650 x 920 x 1050

Description

The DHG series from TMS Europe are a range of precision electric laboratory ovens.

  • They are designed for low temperature thermal treatment such as drying, heating and thermal testing in an air-flow assisted environment.
  • Forced air convection is used to provide more effective drying and quicker heating, as well as improved temperature uniformity throughout the chamber.
  • Temperature range of 10°C above ambient to 200°C, the precision temperature control system provides excellent stability and uniformity with virtually no overshoot. The ¼ DIN size digital PID temperature controller display the current temperature and set-point. It includes a simple timer, which can be used to hold the temperature at the set-point for a period before sounding a buzzer and cooling at its natural rate.
  • A basic over-temperature protection alarm is built into the controller on all models, if the process temperature is more than 20°C above the set-point, it will disable the heating until the difference drops back below 20°C.
  • Independent overtemperature protection (OTP) is included as standard for all models, which provides a separate dial for setting its absolute temperature limit.
  • A control knob selects internal or external air circulation (or a mixture as desired).
  • All models have a switch to turn off the fan if it isn’t desired (although best performance and thermal uniformity is achieved with it on).
  • A round entry port (48mm diameter) into the chamber from the side is included as standard for all models.

Features

  • Rear mounted air circulation fan.
  • Stainless Steel chamber lining.
  • Door observation window.
  • Independent over temperature protection.
  • Rear vent ports.
  • 2.3kW of power.
  • 240 Volts, 50 Hz.

pdf icon Print / Download TMS 240 Litre Europe Lab Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
