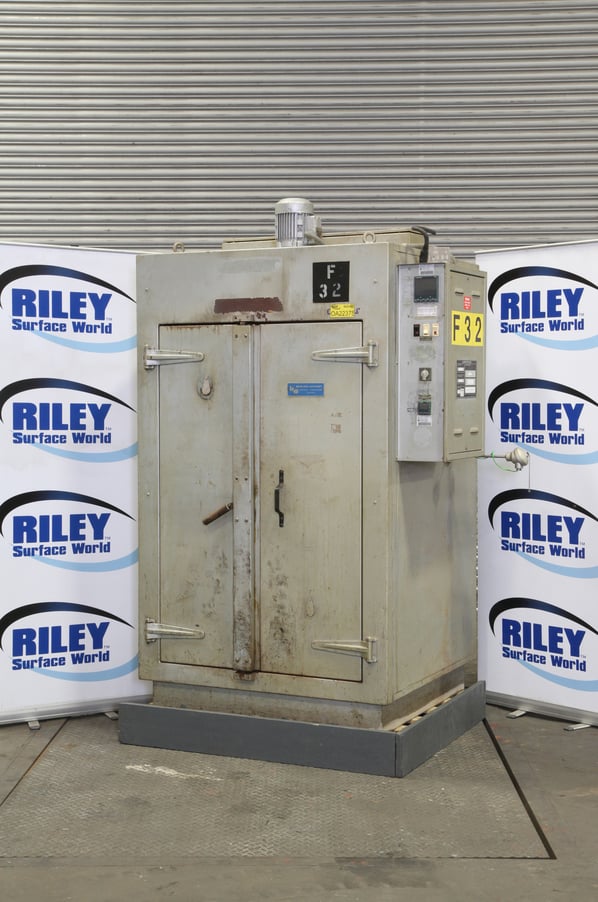

Barlow Whitney E300 HAF Industrial Batch Oven

Stock No
OA2237S
Manufacturer
Barlow Whitney
Model
E 300 HAF
Serial
Y21847 2/80
Condition
Seen working by RSW, Good Condition
Internal Size (WxDxH mm) [?]
690 x 780 x 1300
Max Temp
300°C
Other Info
Provision for 8 shelves 2 supplied
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
662
External Dimensions (WxDxH mm) [?]
1480 x 1140 x 2100

Description

An excellent example of a Barlow Whitney batch oven featuring the following

  • Maximum Temp - 300 Degree Celsius (BAE Calibration range 100° to 210°)
  • 12KW (Kilowatts) load heating
  • Eurotherm 2404 controller.
  • Eurotherm 2216e overtemperature controller.
  • Roof mounted air circulation fan for even hot air distribution within the heating chamber during processing.
  • Robustly co structed twin locking doors
  • Insulated floor.
  • 2 shelves supplied
  • Fitted with 8 x shelf runners for the addition of shelves to increase the load capacity of smaller items.

  • Can be fitted with an explosion relief panel to rear wall (See removable panel in images)

Applications

  • Ideally suited to low temperature thermal treatments such as stress relieving, de-embrittling and tempering.
  • Pre-heating of ferrous/non ferrous/plastic/wood/glass substrates or curing/stoving suitable coatings
  • This would make an excellent addition for those processing larger batches or singular large items in a production environment
  • The Barlow Whitney Large batch oven range is suitable for almost any application from simple drying processes to exacting metal treatments.

Electrical details

  • 400/440v
  • 3ph
  • 50Hz
  • 28 amps per phase
  • Heater load 12kW

pdf icon Print / Download Barlow Whitney E300 HAF Industrial Batch Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
