Delepena Ltd VHM 3C Vertical Honing Machine

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Used Machine Tools
Condition
Seen working by RSW
Location
Chesterfield, UK
Stock No
RWN350
Manufacturer
Delepena Ltd
Model
VHM 3C
Serial
108
Condition
Seen working by RSW
Capacity
Variable
Process Application
Vertical Honing
Location
Chesterfield, UK
External Dimensions (WxDxH mm) [?]
1800mm x 1300mm x 2400mm

Description

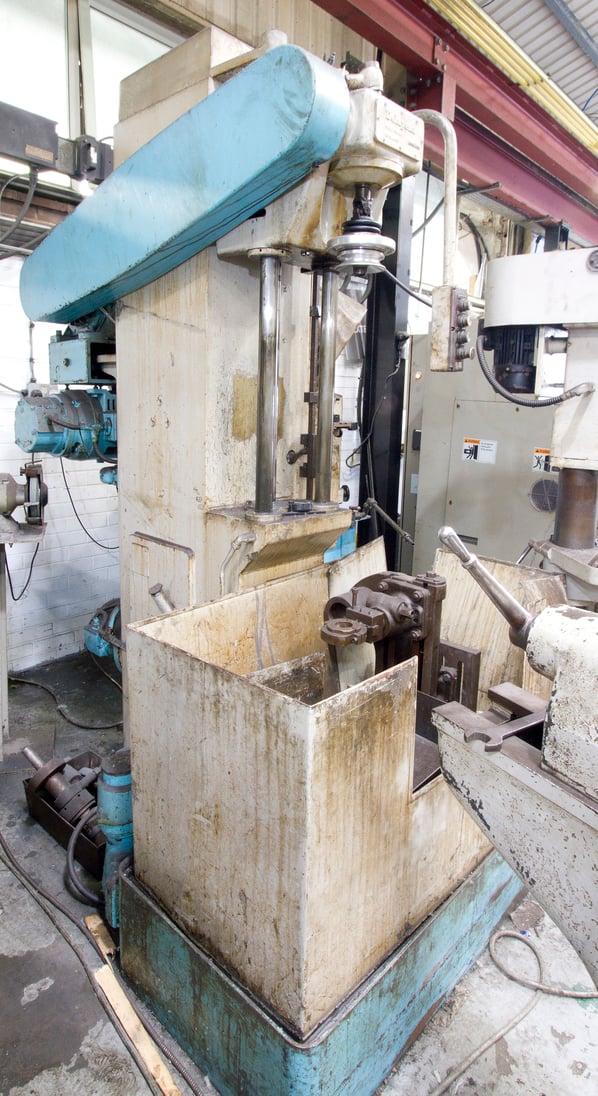

Delapena VHM 3C Vertical Honing Machine

The Delapena vertical honing machine Model VHM/3 combines ease of operation with considerable flexibility, thus rendering it suitable for applications in both small and large production machine shops. The combination of variable speeds, both rotational and reciprocal, enables the machine to be adjusted for optimal performance for different materials, permitting a greater measure of control over surface finishes.

Supplied with a 1105 mm x 521 mm table, it is especially suited to honing a large variety of bore diameters. The simple interchange of honing heads ensures application versatility and production efficiency.

Specification:

  • Diameter range: 1" to 6"
  • Bore length: 1 1/2" - 24"
  • Stroke: 30"
  • Rotational Speed: 0 - 10" (0 - 254mm) - infinitely variable
  • Hydraulic fluid capacity: 180 litres
  • Work table: 1105mm x 521mm
  • Throat: 254mm
  • Stone expansion: Hydraulic
  • Motor; Main spindle drive motor: 5 HP
  • Voltage: 380 - 440 v 3 phase + neutral

pdf icon Print / Download Delepena Ltd VHM 3C Vertical Honing Machine Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
