Ajax Machine Tools Victor 2 Ajax TNS2A CNC Turning Centre

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Used Machine Tools
Condition
From a working environment, Seen working by RSW
Location
Chesterfield, UK
Stock No
RWN450
Manufacturer
Ajax Machine Tools
Model
TNS2A
Condition
From a working environment, Seen working by RSW
Capacity
6 station turret
Process Application
CNC
Location
Chesterfield, UK
Weight (kgs)
4600kg
External Dimensions (WxDxH mm) [?]
1800mm x 2800mm x 2000mm

Description

In business since 1939, Victor Ajax has built a reputation for building future-proofed, well built and reliable machinery for a multitude of industries

The Victor V turn 26 CNC is a fine example of a machine that demonstrates high strength, high precision, flexibility, and economy. Control is through the well established Fanuc O-T controller

  • Max. clearance diameter above bench : 570 [mm]
  • Control: FANUC O-T
  • Max. turning diameter : 200 [mm]
  • Max. diameter between centres : 520 [mm]
  • Distance between chuck / turret face : 10 to 370 [mm]
  • Longitudinal stroke : 360 [mm]
  • Transversal stroke : 160 [mm]
  • Standard chuck diameter : 250 [mm]
  • Number of stations on turret: 6
  • Spindle boring : 87 [mm]
  • Bar diameter in the spindle: 75 [mm]
  • Chuck: 8''
  • Main motor with alternative power: 20 [CH]
  • Speed range: 40 to 4000 [Rpm]
  • Weight : 4600 [kg]

pdf icon Print / Download Ajax Machine Tools Victor 2 Ajax TNS2A CNC Turning Centre Datasheet

Additional files

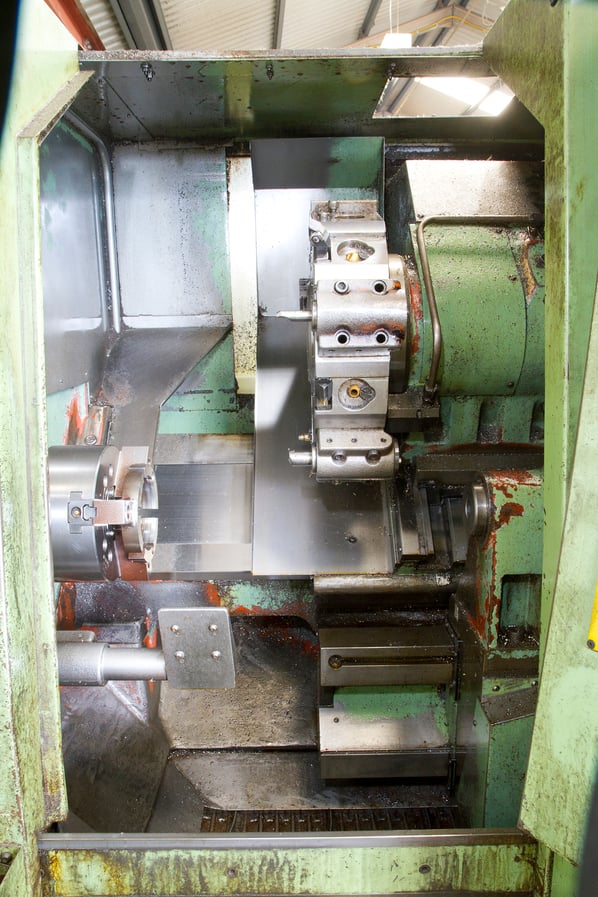

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
