Machines & equipment for sale

Eurowater DME-F 62 Two Column Demineralization Treatment System

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Good Condition, Current Model
Stock No
TA297
Manufacturer
Eurowater
Model
DME-F 62
Year of Manufacture
2006
Serial
601303-026
Condition
Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
1200Litres / Hr
Process Stages
2 Stage, Anion Cation.
Other Info
Serviced by CEDEK Water treatment
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
304
External Dimensions (WxDxH mm) [?]
1000 x 455 x 1800

Description

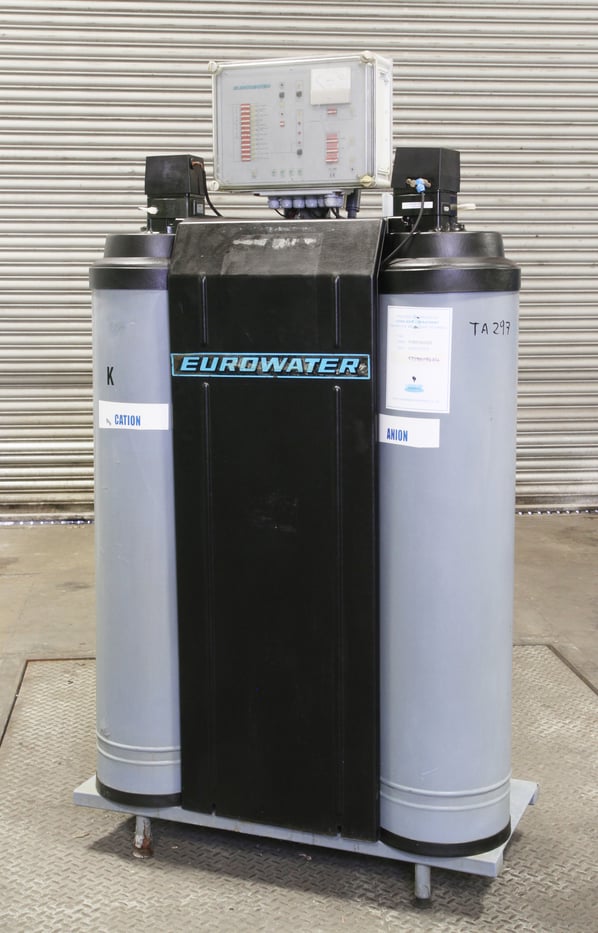

An automatic demineralization, two column plant manufactured by Eurowater, the experts in pure water treatment. This plant is capable of producing 1200 Litres per hour of demineralized water.



Operation

  • This is a two column, automatic demineralization process.  Dissolved solids in the water are removed through ion exchange.
  • The water passes through a cation column that is re-generated with hydrochloric acid. In this stage the cations in the water are exchanged for hydrogen ions.
  • The water then passes through the second column, an anion column that is re-generated with sodium hydroxide, in this phase the anions in the water are exchanged for hydroxyl ions, together, hydrogen and hydroxyl ions form water.

Regeneration

  • The plant has a certain capacity between each re-generation. This capacity is dependent on the total amount of dissolved solids in the water. When the resin is exhausted, the quality of the water declines and the plant must be re-generated with Hydrochloric acid and sodium hydroxide. This re-generation process is automatic and comprises of a backwash, acid and caustic draw, rinse, circulation and quality rinse. After these stages the plant automatically resumes operation. If the quality of the water is not up to the required standard the outlet valve will remain closed and the control panel will show an alarm. There is a process to re set and rectify any error so that normal operation can be resumed. No unsatisfactory water will be released into the operation.

Capacity

  • 1200 Litres / Hr

Applications

  • Multiple surface treatment applications.
  • Rinse waters for precision cleaning lines.
  • Supply of pure water to suit your needs.







pdf icon Print / Download Eurowater DME-F 62 Two Column Demineralization Treatment System Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
