Vixen Surface Treatments Tristar TS600 Conveyorised, 4 Stage, Continuous or Batch Spray Wash Rinse and Oven Dry Plant.

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition, Current Model
Buy Now Add to Quote Contact Us
Stock No
DA1399
Manufacturer
Vixen Surface Treatments
Model
TS600
Year of Manufacture
2013
Serial
2611
Condition
From a working environment, Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
630 x 750 x 600
Process Stages
4 Stage, Wash, Rinse, Rinse, Oven Dry.
Other Info
Automatic Continuous or Batch/indexing
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
3000 + 84
External Dimensions (WxDxH mm) [?]
9200 x 2100 x 2570

Description

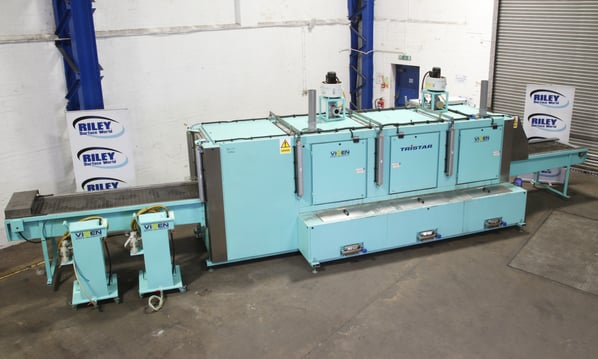

Vixen Tristar TS 600 4 stage mesh belt, continuose Flat bed mesh belt conveyor or indexing / batch cleaning spray wash system.

This spray wash system is designed to wash in a batch style rather than a conveyor continuous through belt system, the belt indexes through to each stage of the process, separation doors open and close,  this gives the advantage of completed separation of each stage of the process so the wash is contained in its own chamber and no spray travels to the rinse stage, it also allows full 360° washing and rinsing.

Stage 1

  • 360° heated spray wash.
  • 9kW x 2 heating power.
  • Chamber Separation doors.
  • Wash tank and filter system.
  • Lowara stainless steel pump.
  • Additional filter unit.
  • Roof mounted Filtermist extraction system (1.5kW).

Stage 2

  • 360° heated secondary spray rinse (Can be set up as a secondary wash if preferred)
  • 9kW x 2 heating power.
  • Chamber Separation doors.
  • Wash tank and filter system.
  • Lowara stainless steel pump.
  • Additional filter unit. (Can be used in stage 2 or stage 3)

Stage 3

  • 360° heated rinse.
  • 9kW x 2 heating power.
  • Chamber Separation doors.
  • Tank and filter system.
  • Lowara stainless steel pump.
  • Roof mounted Filtermist extraction system (1.5kW)

Stage 4

  • 6kW Heated air drying knife.
  • Air supply centrifugal fan.
  • Air heating elements. (18kW total heating)
  • Chamber Separation doors.
  • Hot air circulation system.

Additional Equipment

  • PLC and HDMI Controllers
  • 7 day timer.
  • Variable speed conveyor.
  • Water hose reel for manual spray washing prior to machine operation.
  • Full set of electrical drawings.
  • Filtermist Manual


This unit would benefit from its own demineralised water supply as seen in the last 5 images, see stock number TA297 for details.



pdf icon Print / Download Vixen Surface Treatments Tristar TS600 Conveyorised, 4 Stage, Continuous or Batch Spray Wash Rinse and Oven Dry Plant. Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
