Machines & equipment for sale

Vindon Scientific NDT Dye Penetrant, 4 Stage Crack Detection Facility

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Excellent Condition
Stock No
TA295
Manufacturer
Vindon Scientific
Model
None Destructive Testing
Serial
14910
Condition
From a working environment, Excellent Condition
Work Envelope (WxDxH mm) [?]
Each Tank 1360 x 1000 x 790
Process Stages
4 Stages inc. Well Oven
Other Info
Comprehensive Storm Cabinet.
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
Each Tank Approx. 135Kgs
External Dimensions (WxDxH mm) [?]
Each Tank 1700 x 1130 x 1220

Description

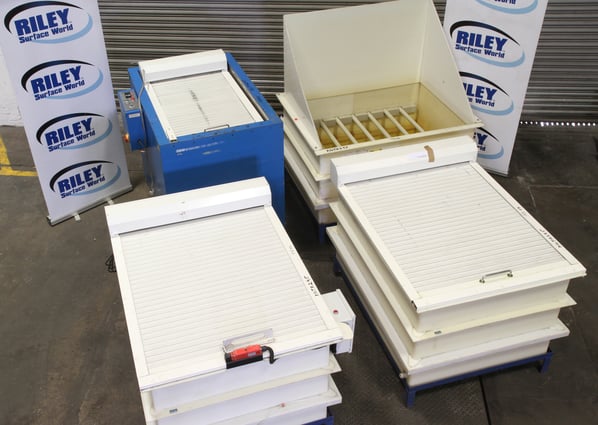

Dye penetrant None Destructive Testing (NDT) set up including four tanks. Penetrant dye hot air drying tank, rinse and drain station, penetrant removal wash tank and dust storm cabinet.

  • Standard and bespoke Dye Penetrant Inspection (DPI) systems are available and customising them to suit your needs is relatively easy to do. Inspection Lines are the most efficient way to penetrant test components and typically include a combination of wash off stations, inspection booths, drying ovens and developer storm cabinets. Inspection lines can be manual or fully automated with penetrant test panels available to verify inspection systems.

Current Configuration

Dust Storm Unit.

  • The unit features interlocking top opening door with time-out release so that operators cannot open the cabinet during a storm sequence and internal heating element to keep powders dry. This guarantees a thin uniform powder coating and allows for the highest level of defect detection.
  • Internal dimensions 1360 x 1000 x 790.
  • Interlocked roller cover.
  • Manual stop / Start or Timer control.
  • Pneumatic air supply required.
  • Steel stand.

Recirculating Hot Air Dryer.

  • External Dimension 1700 x 1130 x 1220.
  • Internal Dimensions 1070 x 515 x 935.
  • Digital PID controlled.
  • Air circulation fan.
  • Multiple heating elements.
  • Eurotherm controller.
  • Manual start / Stop or timer control.
  • Stainless steel internal structure.
  • Grid stands.
  • Manual control air vent.

Dry Developer Tank.

  • Internal sizes of  1360 x 1000 x 790.
  • Retractable roller cover top.
  • Drain plug.
  • Two height settings for support bars.
  • Steel stand.

Rinse and Drain Tank.

  • Internal sizes of 1360 x 985 x 760.
  • Side and rear splash protection screens.
  • Drain plug.
  • Two height settings for support bars.
  • Steel stand.

pdf icon Print / Download Vindon Scientific NDT Dye Penetrant, 4 Stage Crack Detection Facility Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
