Machines & equipment for sale

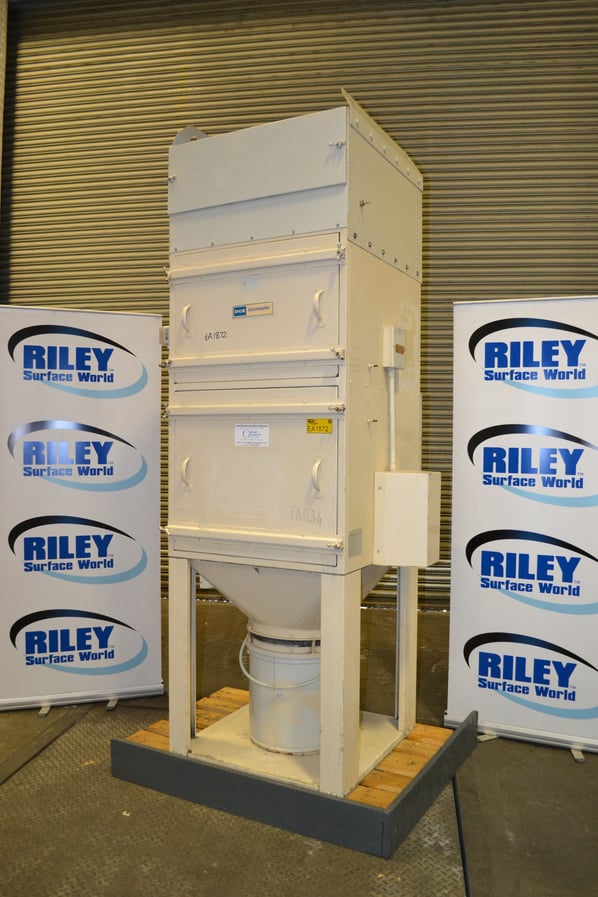

Donaldson Torit (DCE) UMA 152 K5 Unimaster Dry Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
In stock now
Seen working by RSW, Good Condition
Stock No
Donaldson Torit (DCE)
UMA 152 K5
Year of Manufacture
Ref. 2015
Seen working by RSW, Good Condition
Approx Duty CFM / M³/Hr
1000 // 1700
Filter Area ft² / m²
150 // 15
Other Info
ATEX compliant explosion relief pane
Our Central Warehouse, Aldridge, UK
Weight (kgs)
External Dimensions (WxDxH mm) [?]
1000 x 1100 x 2810


The Donaldson Torit® DCE® Unimaster dust collector is an economical and effective solution suitable for a wide range of applications including abrasive blasting, polishing and buffing, grinding, packing of tea or detergents, weighing and mixing of paint pigments, food processing applications and a host of other operations where nuisance dust is generated.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.

The Unimaster dust collector reduces airborne contaminants from the working environment, helps improve air quality for your employees and product quality for your customers. Effective dust control is guaranteed.

Unimaster is a compact shaker-type, intermittent duty collector with a wide variety of configurations and filter bag materials.

Main features:

  • Dust capture at all manufacturing points and flexibility of operation
  • Secondary Filter (HEPA tbc)
  • Compact design with flat envelope shaped multipad filters for high capacity
  • Range of fabrics available for filter to suit applications
  • Advanced 2.2kW fan design with reduced noise levels
  • ATEX rated explosion relief panel
  • Sound reducing hood
  • Multi position inlet manifolds.
  • Easy to install/connect and service
  • No requirements for compressed air

Versatility and dust capture at all points

Highly adaptable, the Donaldson Torit DCE Unimaster dust collector is ideal for intermittent operations in plant processes. Several space-saving units can be placed at dust generation points resulting in total dust capture from the manufacturing processes:

Efficient filtration operation with cost-effective self-cleaning cycle

Utilising high performance Unimaster filters, contaminated air is drawn in through the inlet to the filter by the fan. Initially, some pre-separation takes place as heavier dust particles lose momentum and fall into the hopper.

Finer dusts are carried up to the filter elements and retained on the outer surface of the filter fabric. The cleaned air passes through the filter fabric into the fan chamber and is discharged. At the end of the process or of a shift the fan is switched off and the filter fabric cleaning cycle commences: Dust is dislodged from the filter elements and falls into the collector. This cleaning cycle requires no compressed air, reducing the services required and operating costs.

pdf icon Print / Download Donaldson Torit (DCE) UMA 152 K5 Unimaster Dry Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
