MAG Huller Hille NBH5 CNC Machine

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Castalum Wheelabrator
Condition
Seen working by RSW, Good Condition
Location
Welshpool, Wales, UK
Stock No
CAS300
Manufacturer
MAG Huller Hille
Model
NBH 5
Year of Manufacture
2013
Serial
1003603.01
Condition
Seen working by RSW, Good Condition
Capacity
Travel X 700mm Y 630mm Z700mm B 360°
Process Application
Horizontal Machining Centre
Other Info
Machine Hours – 1498 Hours
Location
Welshpool, Wales, UK
Weight (kgs)
12500
External Dimensions (WxDxH mm) [?]
4120 x 2930 x 3092

Description

MAG NBH 5 CNC Machine

MAG NBH5 Twin Pallet 4 Axis Horizontal Machining Centres with Siemens Sinurmerik 840D PL Control

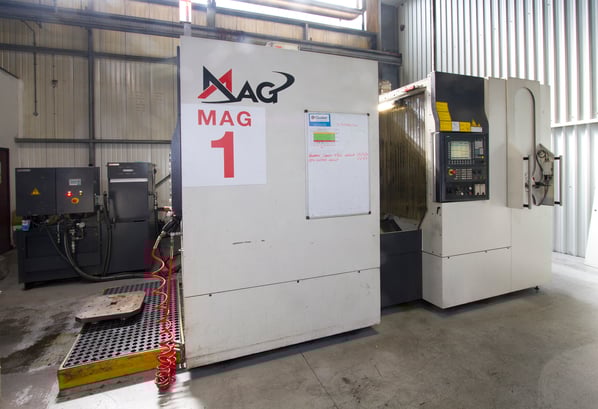

Machine Hours – 1498 Hours - see pics
HSK A 63 Spindle 15000rpm 16nm Torque
Feed 50m/min
Tool Change Chip to Chip 4.5 seconds
40 Pocket Carousel Magazine
Tool Breakage Detection
Baluf Chip Tool ID
High Pressure Thro Spindle Coolant
Travel X 700mm Y 630mm Z700mm B 360°
Pallet Dims 500 mm x 500mm
Rexroth Paper Band Filtration Coolant System

 Technical Description

Working area











Component

Unit

Value

X-axis

mm

700

Y-axis Z-axis

630



700

Workpiece contour max.

Height x Width in mm

750 x 700

Distance to the centre of the table... Spindle nose

mm

100 (SK 40)

in Z

Distance to the centre of the table... Spindle nose

mm

100 (HSK-A 63)

in Z

Distance to the top edge of the table... Spindle

mm

85

nose in Y

Position measuring system











Component

Unit

Value

Distance coded in the guide rail profile

Type of measurement

direct

Positioning inaccuracy A according to DIN ISO

mm

0.007

230-2

Pallet











Component

Unit

Value

Clamping surface of pallet DIN 55201, Form A2

Length x Width in mm

500 x 500

Transport load of each pallet

approx. kg

500

Height of fixture

mm

750

Pallet change time according to VDI 2852

approx. seconds

7

Centre of mass

mm

≤ 400 mm above the centre of

the pallet




Technical Description Machine















Component

Unit

Value

Rotary table indexing

Degrees

360 x 1

Part accuracy

Arc second

6

Tangential torque

Nm

10 000

Tilting moment

Nm

8 000








Component

Unit

Value

smallest increment

Degrees

0.001

Positioning inaccuracy A according to ISO 230-2

Degrees

0.004

Tangential torque

Nm

4000

Tilting moment

Nm

8000









Component

Unit

Value

Max. fixture diameter

mm

700

Max. fixture height

mm

1000

Max. fixture weight

kg

500

Max. pallet weight

kg

150

Max. travel time single

seconds

10

Motor details:





Speed

1/min

max. 1300

Performance

KW

0.37

Mains current

A

1.3

Converter

A

1.6





pdf icon Print / Download MAG Huller Hille NBH5 CNC Machine Datasheet

Additional files

Complete Technical Description

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
