Airflow Group Tunnel Oven and Dry Filter Spraybooth

Direct From Site Clearance

Direct Site Clearance Price [?]
£ Login or Register for price
Clearance ends
22 November 2021 15:00 GMT while stocks last
Part of a Direct Site Clearance
Airflow Tunnel Oven and Spraybooth
Condition
Seen working by RSW, Excellent Condition
Location
Sutton-In-Ashfield, Nottingham, UK
Stock No
MEA500
Manufacturer
Airflow Group
Model
Tunnel Oven and Dry Filter Spraybooth
Year of Manufacture
2016
Serial
KHCE01187
Condition
Seen working by RSW, Excellent Condition
Work Envelope (WxDxH mm) [?]
See Aperture details below
Process Stages
Twin
Other Info
Maximum Temperature 200°c
Location
Sutton-In-Ashfield, Nottingham, UK
External Dimensions (WxDxH mm) [?]
See Description below

Description

Airflow Tunnel Oven and Dry Filter Spraybooth

Equipment incorporates:-

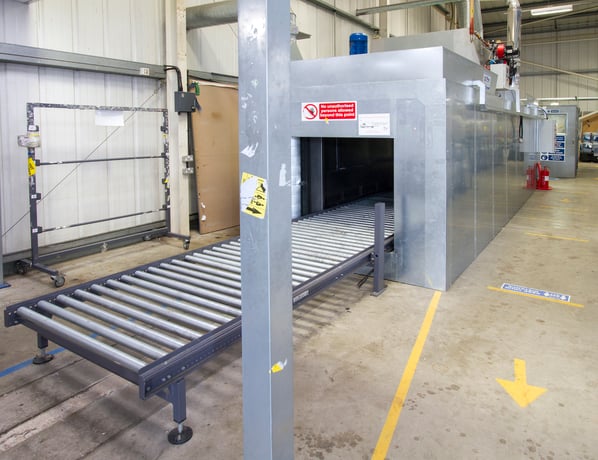

Airflow 8metre long indirect gas-fired air re-circulating Drying Tunnel with:-

  • 2 x  Air-knife vestibules
  • 6m Heated zone
  • Air blade additional drying
  • Ventilation fan and through roof flue.

Airflow Tunnel Ovens provide a zone of heated air through which products are conveyorized by mechanical means at a suitable speed to provide the required period of time within the heated zone. This type of continuous product movement precludes the use of conventional doors, the heated air is contained within the oven structure by means of air knives at the entry and exit points.
Typical applications:

  • Stove enamelling of painted products
  • Curing Powder coated items
  • Curing electric motor windings
  • Drying of damp products
  • Curing of rubber and other synthetic items



Airflow 4 metre long conveyorized-style Enclosed Dry Filter Spraybooth with:-

  • 1.5m wide x 1.2m high entrance/exit apertures
  • 2 x  personnel doors
  • Ventilation fan and through-roof ducting.

Designed for use as an extractor of industrial airborne contaminants in a indoor environment. Typical operations to be conducted within a spraybooth include:-

  • Spray painting
  • Fettling of wood, metals or plastics
  • Mixing of powders
  • Decanting liquids containing evaporating solvents

Overall approx. dims
Oven – 8 metres length x 2.25 metres high (plus 1.4 m for gas workings) x 2.2 metres wide
Spraybooth – 4 metres length, x 2.5 metres high x 3.6 metres wide

  • £75,000.00 when NEW
  • Oven and spray booth have full service history, always carried out by Airflow, last service February 2021
  • Full operating Manuals included
  • Available Immediately





pdf icon Print / Download Airflow Group Tunnel Oven and Dry Filter Spraybooth Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
