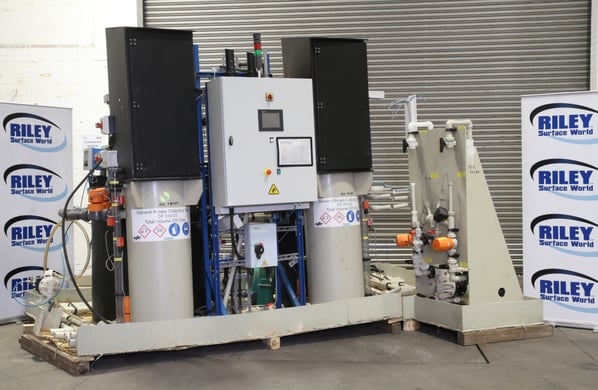

Puretech 1000L Chrome Reduction Station & Chemical Pumping Stations

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition
Buy Now Add to Quote Contact Us
Stock No
TA285
Manufacturer
Puretech
Model
Chrome Reduction Plant
Year of Manufacture
2015
Serial
N/A
Condition
From a working environment, Good Condition
Work Envelope (WxDxH mm) [?]
1000 Litres
Process Stages
Multiple
Other Info
Highly Chemical Resistant Pumps
Location
Our Central Warehouse, Aldridge, UK
Delivery
Your delivery options

Description

1000 litre Chromium Reduction Reactor, Waste chemical pumping stations with Control Panel.

A very high quality Chromium Reduction Reactor constructed from 8mm polypropylene and fully welded, complete with access lids mounted on top of the tank.

Chromium reduction is an essential process in the reduction of hexavalent chromium solutions into trivalent chromium, which can then progress to standard pH correction, flocculation processes (not supplied)

The 1000 litre tank is supplied fully fitted out with the following equipment;

  • Full tank height electric agitator
  • BAMO Twin Immersion pH/ORP probe
  • Immersion depth 200 mm, as a minimum
  • Temperature sensor Built-in Pt100 Ohm at 0°C, 3 wires
  • Length probe Standard 1 m
  • Construction PVC Head housing PBT fiber glass reinforced; IP 65 Cable output
  • Operating temperature 55 °C, as a maximum

Recommended cables Temperature, 3 wire type, shielded, 0.22 mm² pH, coaxial cable type 9060

  • Sulphuric acid Peristaltic dosing pump
  • Sodium Hypochlorite peristaltic dosing pump
  • Polycarbonate sight glass tube
  • 2” Tank drain valve
  • 2” overflow pipe
  • 3 x BAMO LEVEL Switch (low/high/overflow)

High switching power

Bistable switch

Protection: IP 65

A magnetic handle is actuated by an external float or counterweight, it operates the micro-switch causing electrical contact.
Components, such as screw terminal, are fitted on PCB; Device is rated IP 65; Connector is a 3-pole cable plug acc. DIN EN 175301, with PE terminal 13.5; Pipe clamps allow fitting on tube diameters 32 to 63 mm.

  • Rated voltage: 4 ... 250 V AC; 4 ... 30 V DC
  • Rated current: 1 mA ... 3 A (AC or DC)
  • Contact: Bistable micro-switch, change-over contact
  • Gap between 2 switches: 40 mm, as a minimum, plans at 120°
  • Connector: Dismantable; 3-pole cable plug acc. DIN EN 175301
  • Electrical connection: Cable cross section: 1.5 mm² max.
  • Cable output: PG 13.5
  • Ambient temperature: -20 ... +90 °C
  • Housing: Polycarbonate, IP 65

Fittings: Pipe clamps, or stainless steel or plastic acc. O.D.

CE Marks: Acc. to Guidelines 2006/95/EG (low Voltage), 89/336/EEC (EMV)

Waste chemical pumping stations, 2 linked units

A very high quality polypropylene chemical pumping station. With a 200 litre capacity, this pumping station is constructed from 8mm polypropylene and is supplied fully welded, with an additional polypropylene weather housing cupboard mounted on top of the tank, which houses an all stainless steel P41 Serfilco pump

Serfilco P41-3045-CS pump is a pump manufactured from high grade stainless steel and powered by a powerful  3 horsepower and  pumping a maximum 350 litres/hour

Specification

The Series 'HB' Sump Pump features corrosion resistant construction for deep sumps and chemical transfer, this all Stainless Steel pump offers unmatched strength and chemical resistance.
A vapor seal between the rotating shaft and the pump column protects the motor and motor bearings.
The shaft bearing and liner are positively lubricated with the product being pumped or clean water from a separate source by means of the bleed line. A spiral flush groove in the rotating bearing ensures a uniform flow of liquid across the bearing surface. The bearing liner is made of a special fluoride-resistant ceramic.

Located on the discharge end of the pump is a DIASTAR pneumatically operated air diaphragm valve, for use as part of an integrated control system if required.

Located on the side of the tank is a contents level viewing tube, where there are attached 3 BAMO liquid level switches, which can be used to indicate high, low and alarm tank contents and can be used in conjunction with the Serfilco vertical pump (control gear not supplied)

BAMO Fluid level Switch

Principle of operation

A magnetic handle is actuated a float mounted in the tank, which operates the micro-switch causing electrical contact.
The unit is rated IP 65; Connector is a 3-pole cable plug acc. DIN EN 175301, with PE terminal 13.5; Pipe clamps allow fitting to the external sight tube diameter

Technical Specification

  • Rated voltage: 4 ... 250 V AC; 4 ... 30 V DC
  • Rated current: 1 mA ... 3 A (AC or DC)
  • Contact: Bistable micro-switch, change-over contact
  • Gap between 2 switches: 40 mm, as a minimum, plans at 120°
  • Connector: Dismantable; 3-pole cable plug acc. DIN EN 175301
  • Electrical connection: Cable cross section: 1.5 mm² max.
  • Cable output: PG 13.5
  • Ambient temperature: -20 ... +90 °C
  • Housing: Polycarbonate, IP 65
  • Fittings: Pipe clamps, or stainless steel or plastic acc. O.D.
  • CE Marks: Acc. to Guidelines 2006/95/EG (low Voltage), 89/336/EEC (EMV)

 Main Pumps

  • Serfilco Series EH Vertical Sealless Pump w/Motor
  • Model: EH1½-4SC-D3.0
  • Motor: TEFC 3.0HP (2.2kW) 208-230/460/3ph/60Hz
  • Max Flow: 170 US GPM (645 l/min) Max Head: 121ft (37m)
  • Connections: 2” FNPT x 1½” MNPT Materials: CPVC, EPDM

pdf icon Print / Download Puretech 1000L Chrome Reduction Station & Chemical Pumping Stations Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
