Ingersoll Rand Double Diaphragm Pump

Used / Second Hand

Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
From a working environment, Good Condition, Current Model
Stock No
MA713
Manufacturer
Ingersoll Rand
Model
PD15P-yps-ptt
Year of Manufacture
2016
Condition
From a working environment, Good Condition, Current Model
Capacity
102 GPM (466 liters/min. // 28000 l/Hr)
Process Application
Multiple Solution Transfer
Other Info
Max solid pumping of 6.4mm
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
10
External Dimensions (WxDxH mm) [?]
460 x 270 x 640

Description

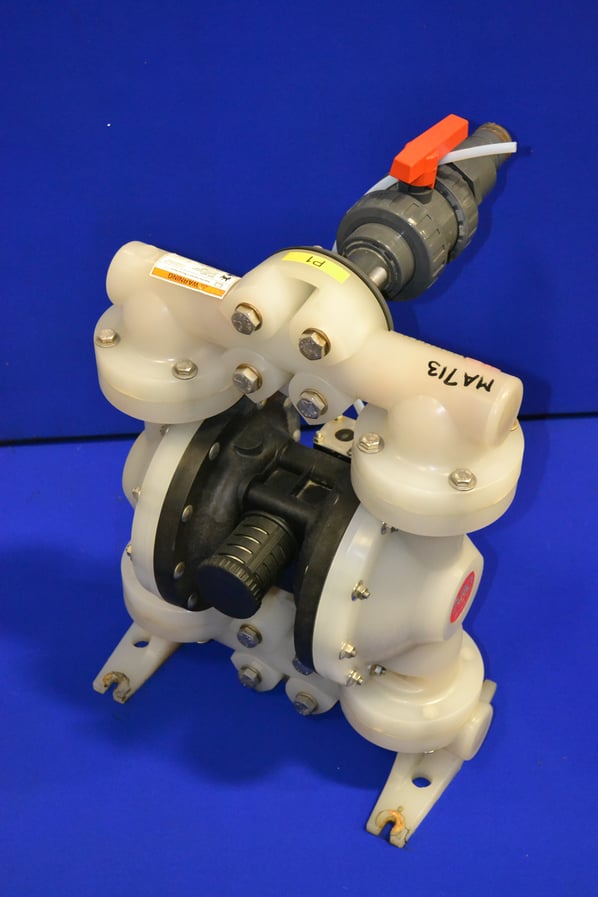

ARO Air Diaphragm Pump

A top quality rugged and durable self-priming, double diaphragm pump supplied by ARO. A Lube-free and non-stalling, this pump will handle any product that pours, from clear water to highly viscous, abrasive and chemically aggressive materials. Specially designed features within  the pump enables it  to handle suspended solids up to 6.4mm and abrasives without damage to the product or the pump.
The unique pump design utilizes far fewer parts than other pumps on the market. This results in longer operating life and easier maintenance at a lower cost.
Since these pumps are driven by compressed air, there is no need for shielded electrical connections or explosion-proof motors. All models can run dry because there are no close fitting or sliding parts in the fluid section. Flow rates can be controlled to produce from zero to maximum flow simply by increasing or decreasing air flow or pressure.

  • Capacity:  102 GPM (466 liters/min. // 28000 l/Hr).
  • Maximum temperature 174°F (79°C).
  • Maximum air pressure 116 PSI (8.3 bars).
  • Maximum solids 1/4" (6.4 mm).
  • Air supply: Inlet 1/2" 14NPT.
  • Outlet 1 1/2" ANSI / Din Flange
  • Fluid inlet 1 1/2" ANSI / Din Flange
  • Diaphragm material Santoprene, PTFE

pdf icon Print / Download Ingersoll Rand Double Diaphragm Pump Datasheet

Additional files

Data sheet

Operation Manual

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
