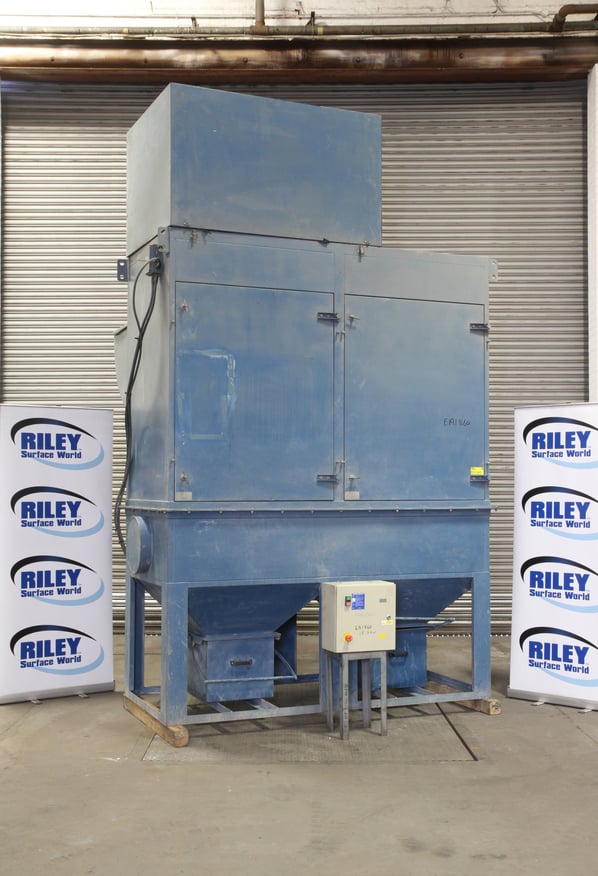

Dust Extraction Int Ltd Very Heavy Duty Dry Bag House Dust Extractor

Stock No
EA1860
Manufacturer
Dust Extraction Int Ltd
Model
64 m 18.5 Kw
Year of Manufacture
2001
Serial
011759101
Condition
From a working environment, Good Condition
Approx Duty CFM / M³/Hr
5000 // 8500
Filter Area ft² / m²
650 // 64
Other Info
Twin up Scoop ATEX Explosion Relief
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
720
External Dimensions (WxDxH mm) [?]
2470 x 1800 x 3920

Description

64M dry bag house general purpose heavy duty dust collector.

Suitable for various applications that generate light to medium volumes of dry dust. Originally used as a powder coating after filter.

The M series is a robust simple mechanically cleaned bag dust collector suitable for non-continuous duty for industrial, commercial and educational locations.

The dust collector is neat, compact, unobtrusive and of a robust weather-proof welded steel design.

Description

The M series is a robust, free standing filter with an automatic shaker cleaning system. It is a model based upon over thirty years of continuous production experience. It was designed for intermittent use, where the filter can stop occasionally for cleaning off line.

The unit has been equipped with a 18.5kW 25Hp motor  and has left and right side ducting connection points.

Twin up scoop ATEX explosion relief panels allow the unit to be used with potentially explosive dusts.

Advantages

  • All access for maintenance from the front of the unit.
  • Waste dust collection directly to bags or bins.
  • Compressed air not required.
  • Efficient , automatic, electric  motor driven shaker mechanism.
  • Twin 3ft³ quick release dust buckets.

Technical specifications

  • Maximum working temperature 80°C
  • Maximum negative pressure 4000 Pa.
  • Maximum positive pressure Accessories: 1500 Pa.
  • Filter areas from 64 m².
  • Wide range of filter materials available to suit most applications.
  • 18.5kW  25Hp Integral, high efficiency fan.
  • Inlet connection of Ø350mm left or right hand side.
  • Air silencer.
  • Control panel.

pdf icon Print / Download Dust Extraction Int Ltd Very Heavy Duty Dry Bag House Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
