Donaldson Torit (DCE) Unimaster UMA 150 Dust Extractor

Stock No
EA1859
Manufacturer
Donaldson Torit (DCE)
Model
UMA 152 G3
Condition
From a working environment, Good Condition, Current Model
Approx Duty CFM / M³/Hr
900 / 1500
Filter Area ft² / m²
150 / 15
Other Info
ATEX rated explosion relief panel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
246
External Dimensions (WxDxH mm) [?]
1160 x 1000 x 2370

Description

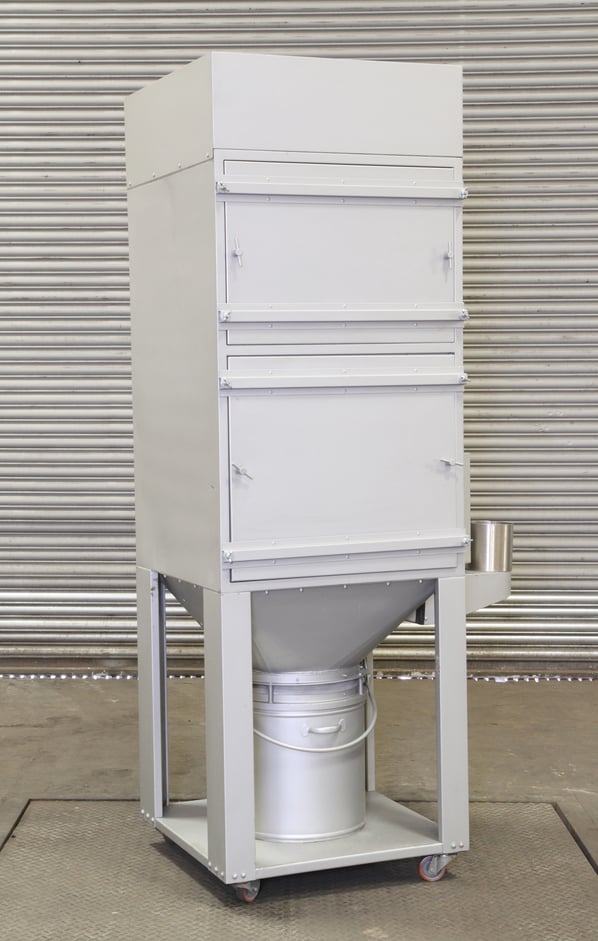

A second hand Unimaster UMA 150 dust extraction unit designed to stand alongside a very wide range of dust generating machinery and processes.

The UMA  is a compact, self contained fabric filter dust control unit complete with 3kW fan, self cleaning mechanism, easy-access filter assembly, & a 2ft³ waste container bucket with quick-release sealer gear and IP rating making it suitable for outdoor siting.

Design features

  • 1.5kW/ 2.0 Hp motor
  • Compact Design.
  • Minimises floor space and fits in virtually any plant layout.
  • Explosion relief panel allows the unit to be used with potentially explosive dusts.
  • Versatile to suit a variety of dust collection application.
  • Quiet & Efficient Operation.
  • Motors and fan are enclosed in the top collector housing to minimise noise.
  • Easy Maintenance.
  • 2ft³ waste collection bucket.
  • Quick-Release bucket Lever allows for easy removal and maintenance of the waste bin.
  • Inlet Deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • Heavy-duty flexible metal inner bag coils.
  • Inserted into the filter bags, the mattresses keeps the filter bags open to maximize airflow and assist in releasing the dust during its cleaning cycle.
  • Bag-Release Screws.
  • Allow for easy removal of bags from the front of the machine.
  • Selection of filter media allows the unit to be tailored to suit specific dusts and applications.

pdf icon Print / Download Donaldson Torit (DCE) Unimaster UMA 150 Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
