Machines & equipment for sale

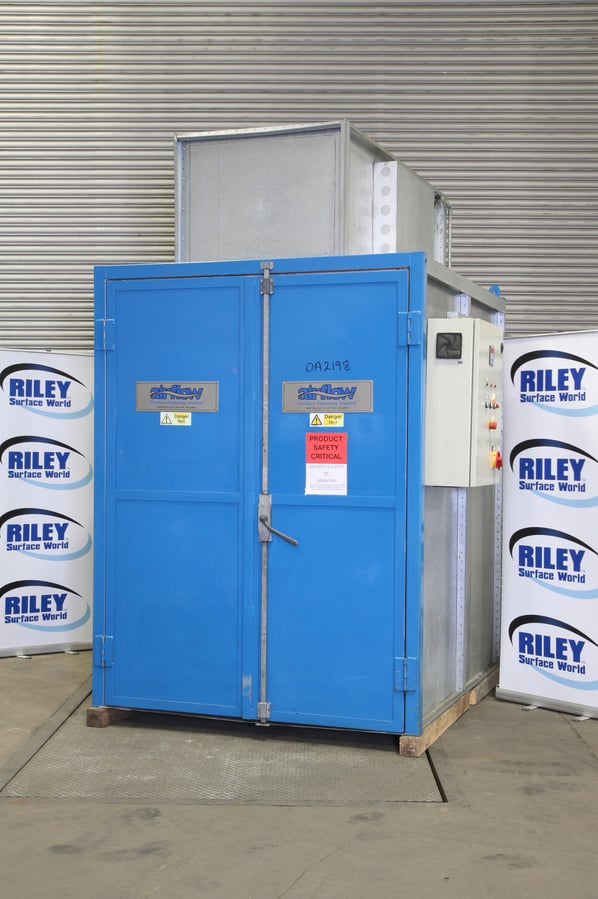

Airflow Group Drum Heating / Drying and General purpose Oven

Stock No
OA2198
Manufacturer
Airflow Group
Model
DH 04 E100
Year of Manufacture
1995
Serial
1694
Condition
From a working environment, Excellent Condition, Current Model
Internal Size (WxDxH mm) [?]
1500 x v1850 x 2040
Max Temp
175°C
Other Info
Roof Mounted Explosion Relief Panels
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1420
External Dimensions (WxDxH mm) [?]
2030 x 2170 x 2940

Description

A good example of an Airflow Industrial electric drum heating oven from one of the leading UK manufacturers.

Airflow Industrial Ovens are ideally suited to a wide range of industrial uses and market sectors include Aerospace, Pharmaceutical, Composites, Electronics and Product Finishing.


Features include

  • Strong Structural Steel Framework with rear Lifting Eyes.
  • Full Width Double Doors with Internal Release Handle.
  • HP 55 Time programmable temperature controller with up to 4 set points and PID temperature control.
  • Explosion Relief to the Roof Area.
  • Temperature range of 60°C to 175°C
  • Powerful Air Circulation Fan.
  • High levels of temperature Uniformity.
  • Unique High Volume Low Pressure hot air circulation.
  • Rear mounted air ducts with volume Control Dampers.
  • Powered exhaust vent with manual control damper.
  • Thermally Efficient Insulated Panels for economical running.
  • BTC 9090 controller. (Can be used as a fixed set point or single ramp controller on power up).


Typical applications:

  • Drum Heating.
  • Product drying.
  • Moisture removal.
  • Rubber softening.
  • Paint Stoving
  • Epoxy/Polyester Powder Curing
  • Hydrosetting
  • Battery processing
  • Plastic Curing
  • Metal annealing
  • Spring stress relieving


Internal dims - WxDxH = 1500 x v1850 x 2040

External dims - WxDxH = 2030 x 2170 x 2940

pdf icon Print / Download Airflow Group Drum Heating / Drying and General purpose Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
