Donaldson Torit (DCE) Unimaster UMA 456 K11 Fully Packaged Dust Extractor

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Excellent Condition, Current Model, Seen powered at RSW
Stock No
EA1858
Manufacturer
Donaldson Torit (DCE)
Model
UMA456K11
Year of Manufacture
2016
Serial
4541120
Condition
Excellent Condition, Current Model, Seen powered at RSW
Approx Duty CFM / M³/Hr
5000 / / 9000
Filter Area ft² / m²
444 // 41.2
Other Info
Twin upscoop ATEX explosion relief panel
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
850
External Dimensions (WxDxH mm) [?]
1800 x 1900 x 3200

Description

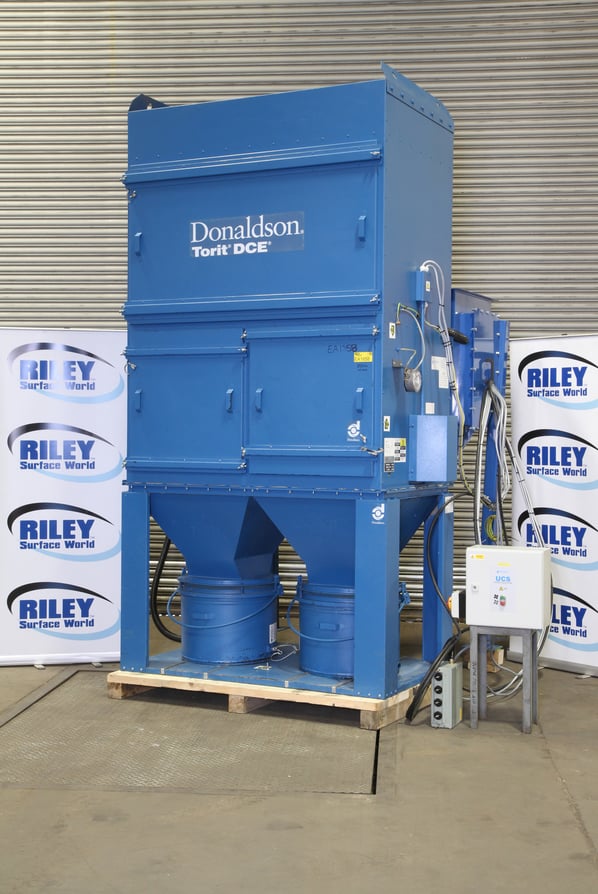

Donaldson Torit (DCE) UMA 456 K11 Dust Extractor

This pre owned DCE Unimaster 456 K11 dust collector from Donaldson Torit is designed to maximize dust collection and the life of the collector components for years of extended service, the Unimaster collector’s compact design and quiet operation provides efficient, trouble-free service.

A self-contained collector with everything needed to begin collecting dust, the Unimaster comes complete with fan and fan motor, automatic shaker and shaker motor, and system controller making installation quick and easy.

Since the automatic shaker cleans the bag filters, there is no need for expensive compressed air. Ideal for intermittent operations in plant processes, the Unimaster can be used as a central system or at the point of dust generation.

Design features

  • ATEX explosion relief panels and upwards deflector.
  • None return flame valve built into the connection ducting.
  • Compact Design, minimises floor space and fits in virtually any plant layout.
  • Versatility to suit a variety of dust collection applications.
  • Quiet & Efficient Operation.
  • Motors and 7.5kw fan are enclosed in collector housing to minimize noise.
  • Easy Maintenance.
  • 2 x 3ft³ collection buckets.
  • Quick-release bucket levers allows for easy removal and maintenance of bin.
  • Inlet deflector knocks down larger particles into the hopper reducing bag abrasion and increasing bag filter life.
  • 2 x 300mm inlet positions.
  • Heavy-duty flexible metal inner bag coils inserted into filter bags keeps bags open to maximize airflow and assist in knocking dust off during cleaning cycle.
  • Bag-Release Screws allow for easy removal of bags.
  • Secondary filter elements for use with fine or dangerous dust.
  • Bucket balance allows bin liners to be used.
  • Weather cowl allows the unit to be sited outdoors without water ingress.

pdf icon Print / Download Donaldson Torit (DCE) Unimaster UMA 456 K11 Fully Packaged Dust Extractor Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
