Machines & equipment for sale

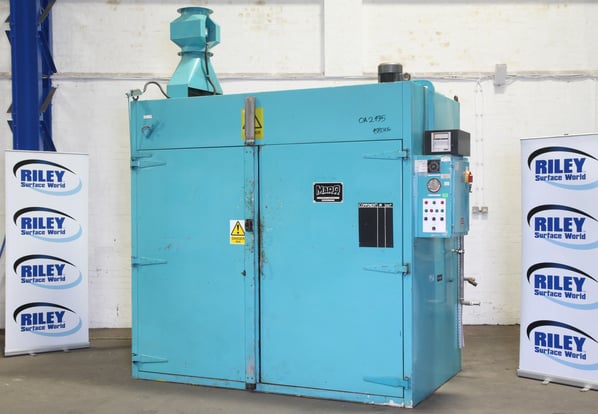

Marr Therm General Purpose Stoving and Batch Treatments Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Stock No
OA2195
Manufacturer
Marr Therm
Serial
12350
Internal Size (WxDxH mm) [?]
2060 x 1255 x 1840
Max Temp
300°C
Other Info
Powered Exhaust and Explosion Relief
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
1580
External Dimensions (WxDxH mm) [?]
2860 x 1670 x 3340

Description

A typical example of a heavy duty industrial process oven from Marr with a wide range of curing and treatments applications with its 300°C air circulated temperature range.


Typical applications may include;

  • Curing water and solvent based paints, varnishes and inks.
  • Curing resins, rubbers and composite.
  • Processing plastics, curing PTFE.
  • Stress relieving.
  • Electroplating de embrittlement.
  • Bonding.
  • Thermal testing etc.

Feature include:-

  • Insulated plated floor.
  • Twin hinged access doors,
  • Horizontal air flow
  • Vented powered extraction with volume control damper.
  • Air circulation fan
  • Explosion relief panels to rear for the use with volatile atmospheres.
  • Right hand control panel including Analogue timer, Omron temperature controller and Chissell Chart recorder.
  • Internal dimensions 2060 x 1255 x 1840
  • External dimensions 2860 x 1670 x 3340
  • 7 day timer
  • Process timer
  • Insulated floor
  • 5 shelf runners
  • 4 heavy duty perforated shelves

Power and temperature

  • 42kW
  • 300°C

Service History

pdf icon Print / Download Marr Therm General Purpose Stoving and Batch Treatments Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
