Gee and Company Enclosed Manual Cleaning Line

Direct From Site Clearance

Price [?]
Please call on +44 (0) 1922 45 8000
Part of a Direct Site Clearance
Automatic, Immersion Treatments, Platinum Plating Line
Condition
Seen working by RSW, Excellent Condition
Location
Rolls Royce stores, near Derby, UK
Stock No
PLA400
Manufacturer
Gee and Company
Year of Manufacture
2015
Condition
Seen working by RSW, Excellent Condition
Other Info
Manual pendant control and 125KG SWL
Location
Rolls Royce stores, near Derby, UK

Description

Enclosed  Manual Cleaning Line

 ATEX Directive

This equipment was originally designed under the ATEX Directive 94/9/EC, however due to its subsequent removal and reinstallation by others its is incumbent on any prospective Buyer to obtain independent recertification by a competent body should they intend to use the plant with acetone or other flammable liquid.

As Acetone has been classified with a Hazardous Risk Phase of R11, Highly Flammable the responsible person(s) within the Buyer’s organisation will need to be familiar with the Dangerous Substances and Explosive Atmospheres Regulations 2002 (DSEAR) Approved Codes of Practice (ACOP) and Guidance along with all other relevant Approved Codes of Practice and Current Legislation, before the plant is made operational. The plant is offered on a sold as seen basis by Riley Industries without warranty (implied or otherwise) as to its suitability in any particular application.

General Description

A manual process line installed circa 2015 which is in excellent condition.

Designed to carry the removal of masking lacquer on Turbine Blades using Acetone but offering the possibility of conversion to other aqueous cleaning processes on high value components.

The equipment is arranged in a straight line. The work is carried through the line by an overhead electric hoist with manual pendant control and 125KG SWL.

A sophisticated supervisory control and data acquisition(SCADA) system is provided incorporating a Siemens PLC linked to a Simatic touchscreen HMI to provide the man machine interface (MMI).

This represents a good opportunity to acquire a process line in excellent condition offering considerable savings over the buy new price.

Principle of Operation

The Manual Acetone De-Lacquer Line has been used for removing lacquer from aero engine components.

Components are manually loaded and unloaded into baskets by an operator processed through the tanks using an overhead electric chain hoist under manual pendant control.

The whole of the acetone plant was installed inside a purpose built half hour fire rated enclosure as the system is classified as hazardous by the nature of materials being used. The previous owner’s health and safety department has provided this Zone Classification sketch for indicative purposes only. The Buyer will need to carry out their own assessment in the event of intending to utilise inflammable liquids in the plant.

Enclosure Zoning Sketch (see file attached)

Technical Specification

  • Plant Design:                                   Straight Line Manual Plant.
  • Process:                                           Cleaning (Masking Lacquer Removal)
  • Base Metal of Components:         High Strength Super Alloys
  • Components:                                   Turbine Blades
  • Operation:                                         Manual
  • Tank Section:                                   780mm wide x 625mm deep
  • Work Transfer:                                  One 125kg SWL electric hoist pendant controlled.
  • Electrical Supply:                             400v 50hz 3ph with neutral

Approx. Plant Dimensions:
Length: 6.30 Metres    (Excluding Ancillary Equipment)
Width: 2.35 Metres
Height:    3.00 Metres

Specification of equipment–

Station No. 1   Process Acetone Drip Tank (T15)

  • Temperature: AMB
  • 1 Off  Single compartment Stainless Steel tank of internal size 710 x 780 x 625mm deep.
  • The body of the tank will be manufactured from material supported with additional strengthening.
  • The tank will be raised off the floor by stainless steel support stand.
  • Tank will be supplied with:
  • 1 Off  Actuated stainless steel lid.
  • 1 Off  Manual drain valve.
  • 1 Off  Recirculation pump.
  • Tank is extracted from the rear.

 Station No. 2       Process Acetone De-Lacquer Fine (T14)

  • Temperature:         AMB
  • 1 Off  Single compartment Stainless Steel tank of internal size 710 x 780 x 625mm deep.
  •  The body of the tank will be manufactured from material supported with additional strengthening.
  •  The tank will be raised off the floor by stainless steel support stand.
  •  Tank will be supplied with:
  •  1 Off  Actuated stainless steel lid.
  •  1 Off  Manual drain valve.
  •  1 Off  Recirculation pump.
  •  Tank is extracted from the rear.

 Station No. 3         Process Acetone De-Lacquer Rough (T13)

  • Temperature:         AMB
  • 1 Off  Single compartment Stainless Steel tank of internal size 710 x 780 x 625mm deep.
  • The body of the tank will be manufactured from material supported with additional strengthening.
  • The tank will be raised off the floor by stainless steel support stand.
  • Tank will be supplied with:
  • 1 Off  Actuated stainless steel lid.
  • 1 Off  Manual drain valve.
  • 1 Off  Recirculation pump.
  • Tank is extracted from the rear.

 Station No. 4       Process Acetone De-Lacquer Rough (T12)

  • Temperature:         AMB
  • 1 Off  Single compartment Stainless Steel tank of internal size 710 x 780 x 625mm deep.
  • The body of the tank will be manufactured from material supported with additional strengthening
  • The tank will be raised off the floor by stainless steel support stand.
  • Tank will be supplied with:
  • 1 Off  Actuated stainless steel lid.
  • 1 Off  Manual drain valve.
  • Tank is extracted from the rear

 Transfer Trough Process Stations

 Transporter Equipment

 1 Off  Fully motorised 125kg SWL pendant controlled electric chain hoist.

 Track Support Structure

The runway track is manufactured from pained steel beams supported by stanchions from the floor.  Cross bracing is provided as required.

The self-supporting structure is in bolted sections lined and levelled on to the factory floor without the need for special foundations.
The complete structure is manufactured from painted steel suitable for the operating environment.

 Plant Enclosure

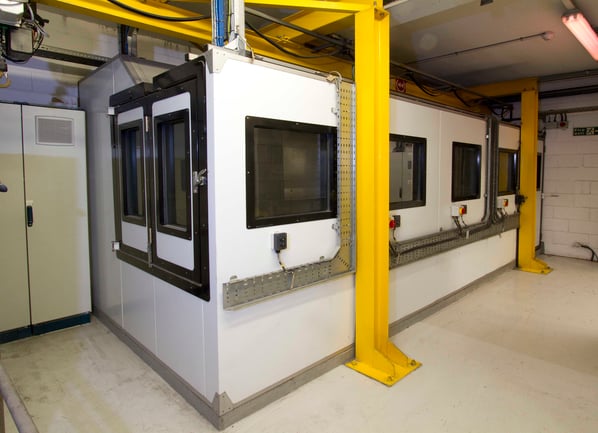

The plant is located inside a purpose built enclosure manufactured from bolted sections of plastic coated steel with a half hour fire rating. There are double glazed viewing windows in front of each tank. Twin opening doors on one end for the basket to enter and exit the enclosure and a personnel access door at the side. All doors also fitted with double glazed widows. The enclosure has a longitudinal slot in the roof fitted with closure brushes through which the hoist chain hangs. The enclosure is also fitted with internal lights. The plant is located into the corner of the room, so the back wall and right hand end wall are provided by the building fabric, the removable enclosure itself making up the front wall and the load end wall of the box.

Drip Shields

Tanks have drip shields in between to stop solution spillage along with full length consoling at front and back to give a very attractive and functional appearance.

Fume Exhaust Systems

 The extraction system includes the following major items of equipment: -

  • Fume exhaust hoods
  • Exhaust dampers
  • Interconnecting trunking

Fumes are extracted via rear lip hoods, into a plenum chamber with connection vertically through riser ducts into a manifold running at high level at the rear of the plant.

Specification Of Equipment

Item 1 - Lip Extract Ducts -

Lip extraction ducts fitted above tank flange at rear with vertical offtake.

Material of Construction:   - Stainless Steel

Item 2 - Ductwork -

Flange connection risers to main manifold.

All ductwork supplied complete with supports, hangers, brackets, fasteners, and fixings.

Material of construction: - PPS

Control Console

The central control console is located outside the zoned area.

Electrical Wiring

All electrical wiring between the central control console and field electrical items is installed in corrosion resistant PVC or stainless-steel trunking suitably supported.

Mechanical Services

One set mechanical services serving the previously described plant complete with all necessary supports and brackets.

Maintenance and operations manuals

Hard and electronic copies of the available manuals have been provided by Chromalloy.



pdf icon Print / Download Gee and Company Enclosed Manual Cleaning Line Datasheet

Additional files

Process Schedule

PLA400 Manual Enclosed Cleaning Line Drawing

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
