Elma Ultrasonic Dunking Modular Cleaning, Rinsing and Drying System

Stock No
DA1391
Manufacturer
Elma
Model
X-TRA 550/2-WLT-M
Year of Manufacture
TBC
Serial
0380434809
Condition
Excellent Condition, Current Model
Work Envelope (WxDxH mm) [?]
Each Tank 300 X 470 X 300
Process Stages
Dunking, Ultrasonic clean, rinse & dry
Other Info
BASKET 260 X 430 X 85
Location
Our Central Warehouse, Aldridge, UK
Weight (kgs)
454
External Dimensions (WxDxH mm) [?]
2580 x 1100 x 1200

Description

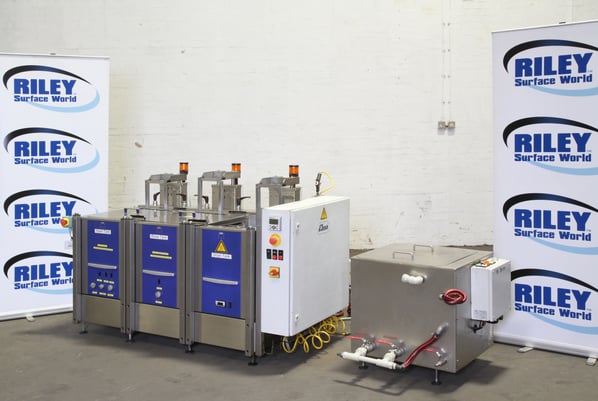

Elma Ultrasonic Dunking wash, rinse and dry modular cleaning line with heated wash and rinse plus a heated weir filtering system.

Three process tanks with lifting and lowering pneumatic cylinders to raise and lower the baskets into each tank.

Stage 1

  • ultrasonic cleaning, tank made from extremely cavitation-proof stainless steel (V4A).
  • Ultrasonic power control, manual setting.
  • Heating control.
  • Time control.
  • External pump and filter system.

 Stage 2

  • Rinse tank, made in stainless steel.
  •  Heated on / off or temperature setting range 30°C to 80 °C.
  • External pump and filter system.

Stage 3

  • Hot air dry.
  • On / Off Control.
  • Storktronic temperature controller.
  • Base mounted fan.
  • Stainless steel construction.

Features

  • Pneumatic dunking of baskets in each tank.
  • Heated Oil separator tank with a weir system.
  • Mesh wash baskets.
  • External pumps and filters for wash and rinse.
  • Auto switch off after 12 hours.
  • Auto switch off at 90°C.
  • Low level liquid switch off.

pdf icon Print / Download Elma Ultrasonic Dunking Modular Cleaning, Rinsing and Drying System Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
