Wheelabrator Vacublast Ventus 200P Pressure Fed Heavy Duty Large Shotblast Cabinet with Load End & Overhead Hoist

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
In stock now
Seen working by RSW, Good Condition, Current Model
Stock No
Ventus 200P
Year of Manufacture
Seen working by RSW, Good Condition, Current Model
Work Envelope (WxDxH mm) [?]
2 x 2 x 2M Cabinet with Ø1500 tilt table
Work Handling Method
Manual Rotary Work Table + Power Hoist
Other Info
Refurbished 2015
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2100 x 3000 x 3050 + support equipment

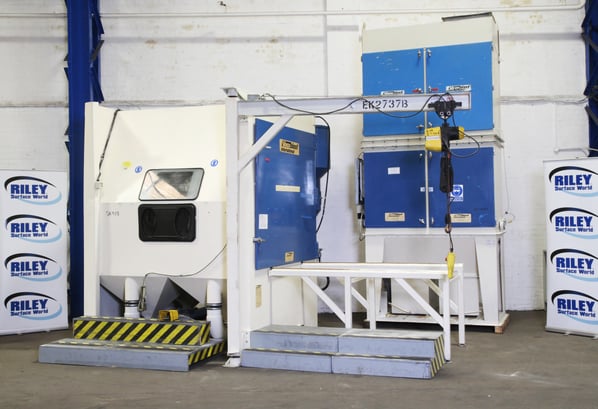

Wheelabrator Vacublast Ventus 200P Pressure Fed Shotblast Cabinet

The Ventus 200 P shot blast machine is a self contained pressure feed cabinet with a dust collector and mounted reclamatory cyclone and 30ltr pressure feed pot fed by a cyclonic separation unit.

Former Rolls Royce Machinery

This plant is one of several machines acquired during Rolls Royce's reorganisation of their manufacturing facility at Inchinnan, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality engine components,
but can provide a benefit to any industry.

The Ventus has the ability to blast at up to 100psi with a wide range of abrasives and would have an average consumption of 82cfm at this pressure with an average size nozzle.

Extra large approx.: 2000 x 2000 x 2000 mm Blast Cabinet design is user friendly with large armlets, wide opening R/H door, easy access pressure control and internal lighting.

The sophisticated cyclone system enables the cut point of the separation of reusable abrasive from waste to be accurately set allowing maximum separation of the reusable abrasive and the waste dust.

With the aerated feed system, the abrasive blasting stream can be set accurately and consistently even at low blasting pressures making this a very versatile machine.

The Vacublast pressure fed hand blast cabinet is essential when removing heavy corrosion, tough coatings or when high production rates are required.

Cleaning rates are up to 5 times the speed of suction cabinets and are suitable for use with a wide range of
abrasives such as Steel shot, Aluminium oxide, Glass bead and walnut shell to name but a few.

The machine has historically been using 120/220 grade Aluminium Oxide and so has had light duty use, could be used for multiple ferrous and non-ferrous abrasive medias.

The Filtex FX500 extraction unit features;

  • Full-width hinged access doors, with quick release fasteners, provide easy inspection or removal of fan, motor or either filter
  • High-performance fan set.
  • ATEX rated FIKE explosion relief panel for use with potentially explosive dusts
  • Automatic electrical shaking mechanism control unit consists of contactors and time delay relays so that when the stop button is operated, the fan motor is allowed to run down before the shaker motor is automatically energised. This then runs for a pre-determined period, after which the whole system is shut down and resets.
  • Secondary filter
  • Pressure fed machines are commonly used in high production environments or on applications such as peening, surface coatings removal, surface preparation and cleaning.

Work Handling

  • Electrically powered 250Kg SWL swinging load arm.
  • Manual rotating work table.
  • Trolley for loading and un-loading the work chamber.


pdf icon Print / Download Wheelabrator Vacublast Ventus 200P Pressure Fed Heavy Duty Large Shotblast Cabinet with Load End & Overhead Hoist Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
