JLS (Redditch) Ltd Heavy Duty 550°C Electric Treatments Oven

Used / Second Hand

Refurbished Price [?]
£ Login or Register for price
Sold As Seen Price [?]
£ Login or Register for price
Availability:
In stock now
Condition
Seen working by RSW, Good Condition
Stock No
OA2187S
Manufacturer
JLS (Redditch) Ltd
Model
Vertical Uprising Door
Year of Manufacture
1981
Serial
81/3555
Condition
Seen working by RSW, Good Condition
Internal Size (WxDxH mm) [?]
1150 x 2950 x 1775mm
Max Temp
550°C
Other Info
110kW total electrical load
Location
Our Central Warehouse, Aldridge, UK
External Dimensions (WxDxH mm) [?]
2850 x 3430 x 4950

Description

** High Standard Professional Removals to begin July through to August 2021  **

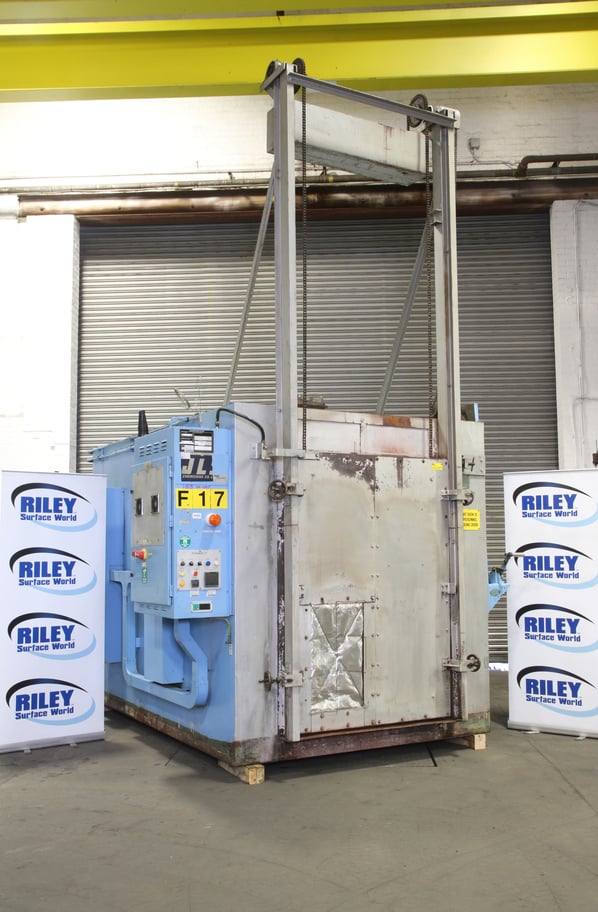

JLS high-temperature processing oven

This JLS oven is suitable for various thermal treatment processes up to 550°C, e.g. drying, preheating, normalization, and other similar purposes. The oven can be applied in electronics, plastics, metal, and other branches of industry. The application of the air circulation in this design of oven ensures a good temperature distribution throughout the chamber for excellent temperature uniformity and fast cycle time heat treatment processes.

The manually operated vertical uprising door and independent freestanding control panel are ideal for optimizing the footprint on the shopfloor

The large oven chamber is equipped with twin 2.2kW  air circulation fans located on the side of the oven for optimum and consistent air circulation through the processing area.

Four explosion relief panels are fitted into the rear of the oven chamber to ensure a high level of safety in the event of an internal explosion. Located in the roof of the oven is a large baffle-controlled air vent, which will remove any unwanted smoke or prevent the build-up of potentially volatile fumes within the oven during processing.

The oven heated by a Eurotherm Thyristor and controlled by a Eurotherm 2404 controller with self-adapting tuning, and an externally mounted Eurotherm 2216e overtemperature controller



Former BAE Systems Machinery

This plant is one of several machines acquired during BAE System's reorganisation of their manufacturing facility at Brough, UK.
Their worldwide reputation for quality is reflected in the machinery and maintenance of their manufacturing plant.
Many of these machines include features that are necessary for the manufacture and servicing of high quality aviation and aerospace components,
but can provide a benefit to any industry.

Features

  • Freestanding Control panel
  • Twin 2.2kW Ventilation/air circulation motors mounted to the side of the oven,
  • Ventilation and exhaust flue
  • Insulated with mineral rock wool (complete absence of any asbestos),
  • A Door safety isolation switch which cuts the power to the heating elements if the door is opened,
  • Eurotherm 2404 digital display temperature control,
  • Eurotherm 2216eOTP (over-temperature protection) outside the control panel,
  • Eurotherm Tyrister, for close control of the heating profile

Technical Specifications

  • Chamber volume 4000 litre
  • Rated power not more than 108kW
  • Rated supply voltage 400 Volt
  • Rated frequency 50 Hz
  • Number of phases-3
  • Continuous operating temperature 50-500°C
  • Maximum  temperature 500°C
  • Airflow-Horizontal
  • Bogey type trolley (manual)
  • Temperature uniformity in working space at rated temperature in a thermal steady state without charge not more than ±5°C

pdf icon Print / Download JLS (Redditch) Ltd Heavy Duty 550°C Electric Treatments Oven Datasheet

Additional files

Photographs taken prior refurbishment. Our refurbishment service is not available on all machines.
